Society of Glass Technology · [Sheffield] · leaf 716

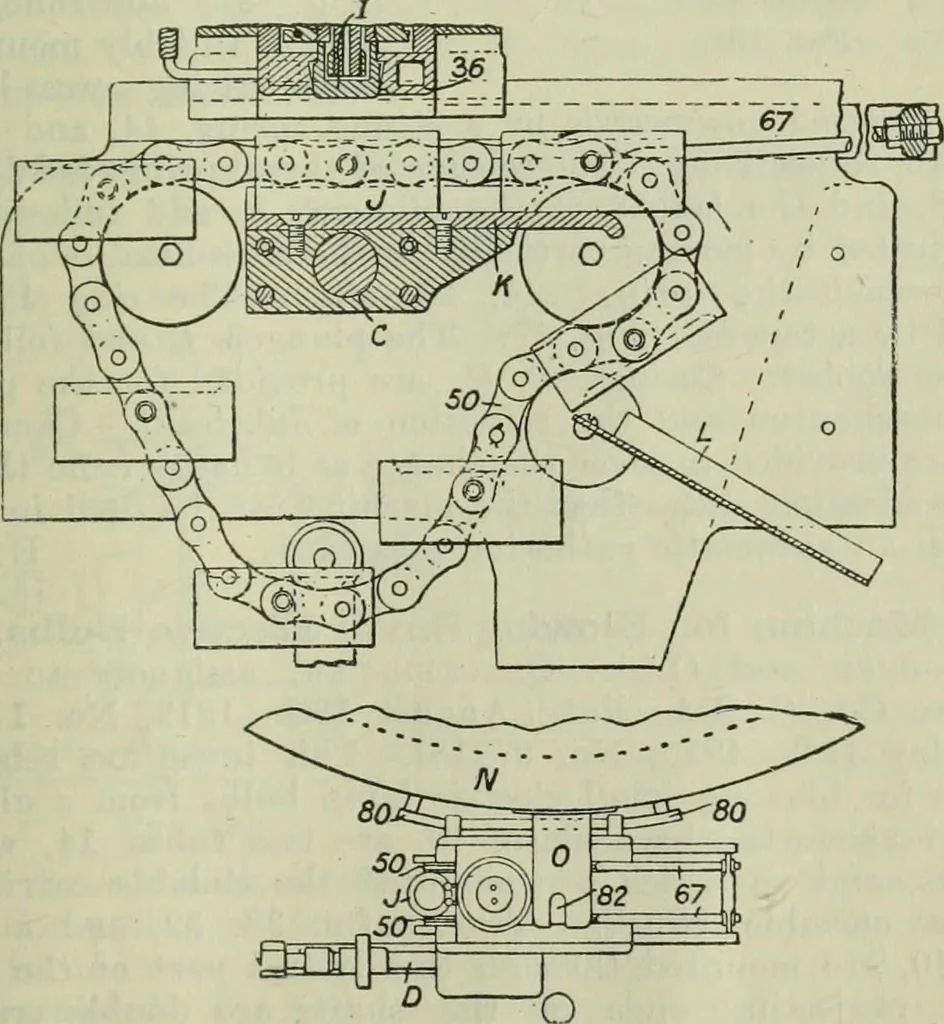

The mould now closes about the parison, the blowing is completed,and the carrier stops in a reserve station close to the loadingposition. The blow-iron with the bulb attached can now beremoved, and the frame, as soon as a new gather is inserted in thepreceding carrier, automatically moves onward to… … Fig. 197. 234 JOURNAL OF THE SOCIETY OF GLASS TECHNOLOGY. manufacture of pressed glassware. The machine is shown in planin Fig. 197, hooked on to a rail, 80, in front of the hole in a tankfurnace, N. A belt-driven shaft, JJ (Fig. 198), drives the main shaft, C, through worm gearing, 6,7. The…
Glass
Internet Archive · Gerstein Library, University of Toronto · Public Domain Mark 1.0. Free to use for anything.
