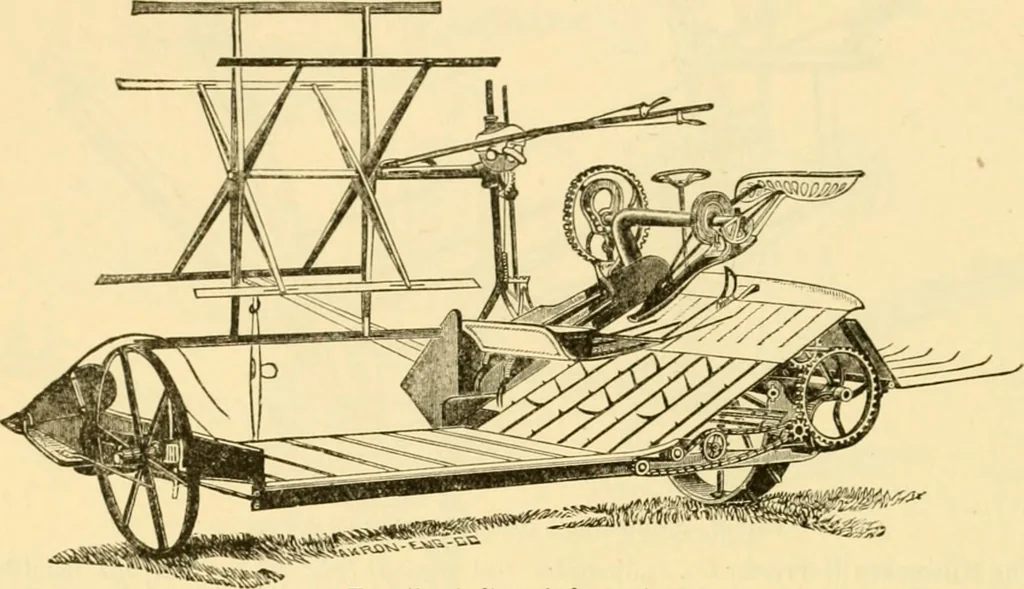

rain is moved up the elevator to the binder undera suspended float carrying a pair of raking teeth, and by a gang of teeth with tedder actionderived from a crank-shaft working under the elevator-boards. The teeth are propelled inslots in the elevator, and serve the double purpose of elevating the… … Fig. 49.—Aultmans harvester. on platform only, and elevates and packs the grain with a rotary rake having teeth on fourarms. The rake-heads rock, so as to feather and draw out of work, as soon as they arrive atthe edge of the binder-table. They are held in work by tail-guides at the forward end.…
