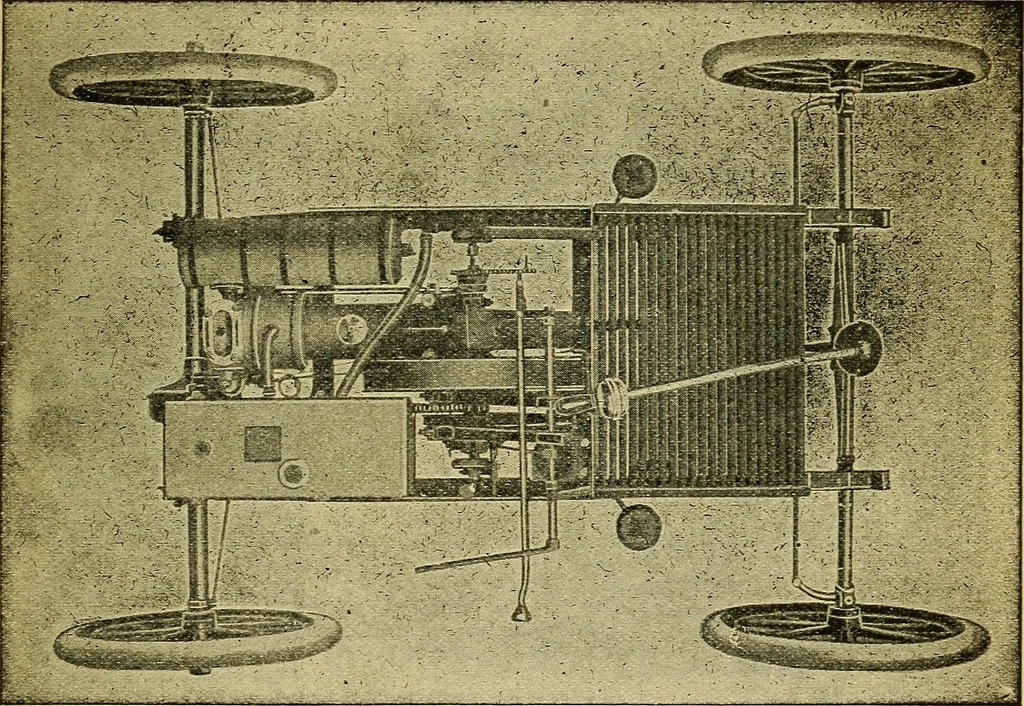

bling the carriage to take uneven roadswithout jar or inconvenience, better than with many patterns ofswivel-jointed tubular frames. The horizontal one-cylinder engine is set midway on the centralsupport of the side-springs, with the change-speed gears on themain shaft. The water-circulation system… … Fig. 318.— Plan of Chassis of Oldsmobile. carriage, water being drawn from the lower to the upper row bythe pump; the cooling being effected without the use of fins orribs, as in most other forms of tubular radiator. The startingcrank, fixed permanently on outside of carriage body, turns…
