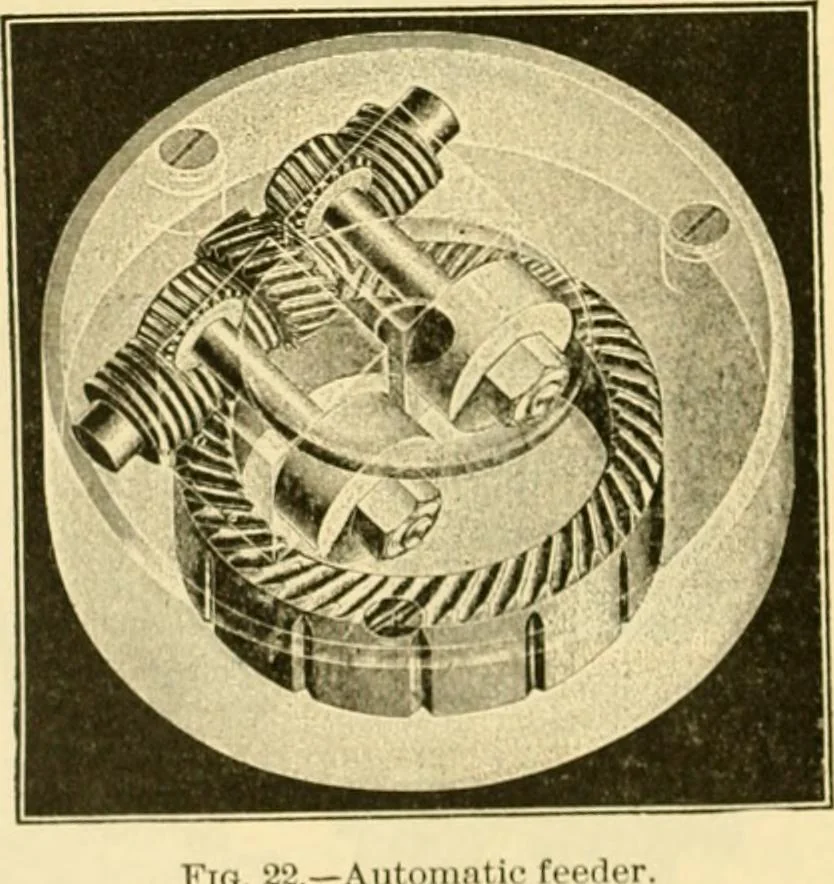

purposes, such as neck-ing in. cutting off, or turning if desired. The tool-holder for hollow mills, taps, dies, ream-ers, drills, etc., is shown by Fig. 21. It is aflacheil to the turret in the same wayas the othertools. The chuck used on the sf.indle is shown by the group of cuts (l-ig. 2:!).… … Fig. 22.—Autoiniiti LATHES, METAL-WORKING. 467 view (Fig. 15), this lever, by suitable connections, being made to slide the collar on the outsideof the chuck which opens and closes the collet in the manner indicated in Fi-. 28.
