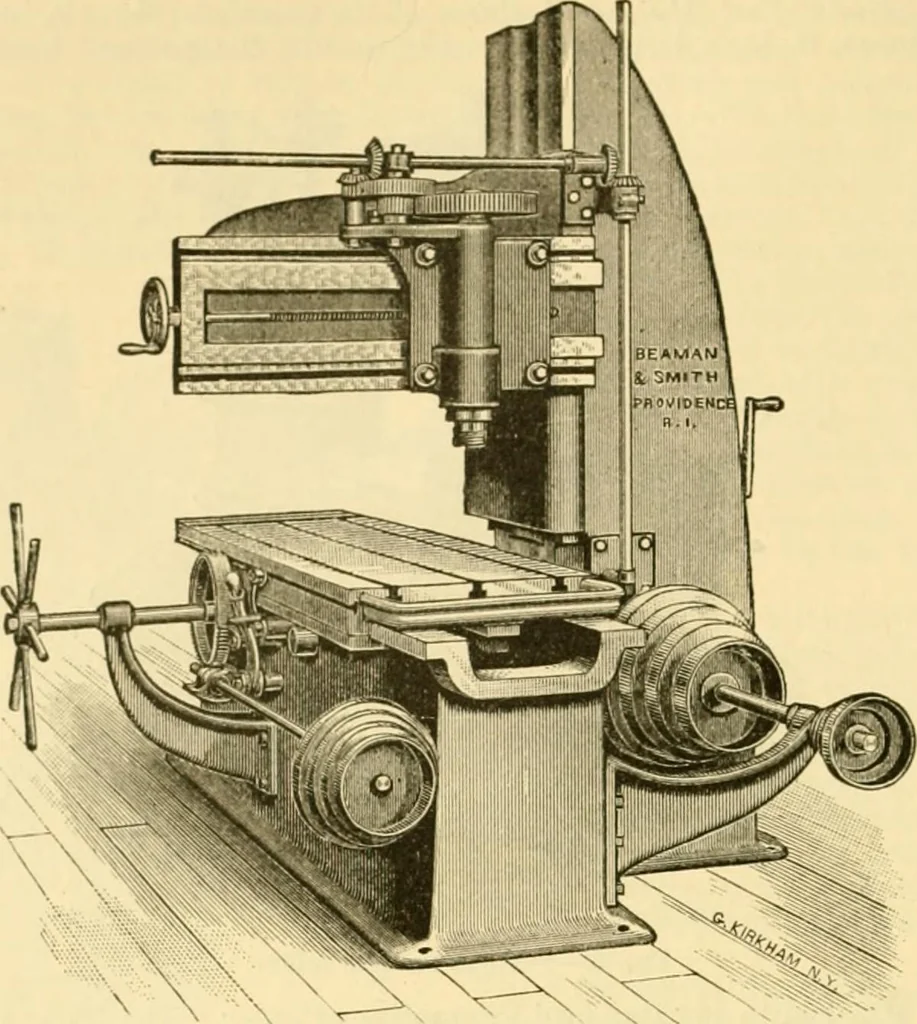

Fig. 7.—Vertical milling-machine. 512 MILLING-MACHINES. … Fig. 8.—Vertical milling-machine. pinions until the millinij-cutter is over the ports as desirod, and are then fastened. The cross-head carrying the spindle-saddle is lowered similar to that of a planer, until the milling-cutter
