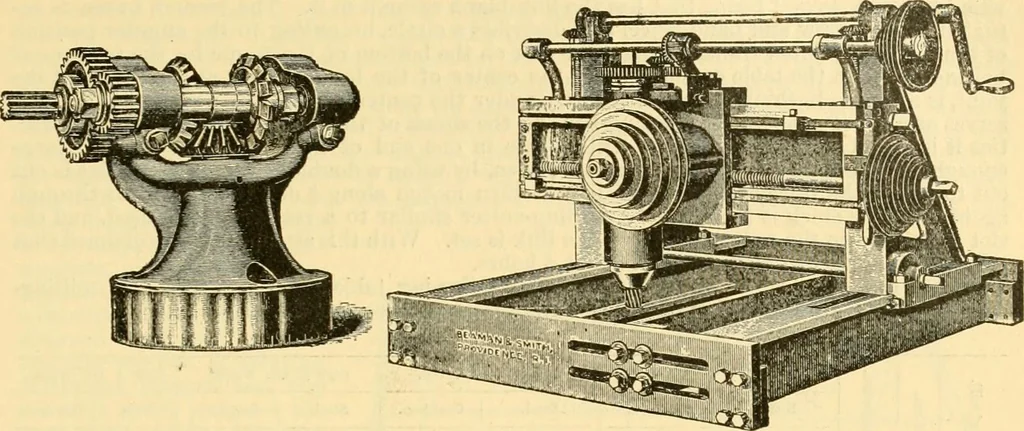

Fio. 9.—Vertical niillinK-nincliine.is at tho requireil depth, and then securely fastened to the uprifjhts. The spindle is of steel,and runs in conieal bronze bearings with adjustment to compensate for wear, and is drivenby a cone. Tlie feed is autonuitic in either direction. MILLING-MACHINES. 513… … Fig. 10.—Ancfular attachment. Fir. n.—Cylinder-port milling-machine. groove in the surfaces adjoining the steam-chest seat with hammer, chisel, and file. Thismachine is also adapted to the drilling either of new holes for studs or the drilling out of old
