Illustrated catalogue and general description of improved machine tools for working metal (1899)
Sellers, William, & co. [from old catalog] · Philadephia, Levytype company · leaf 118

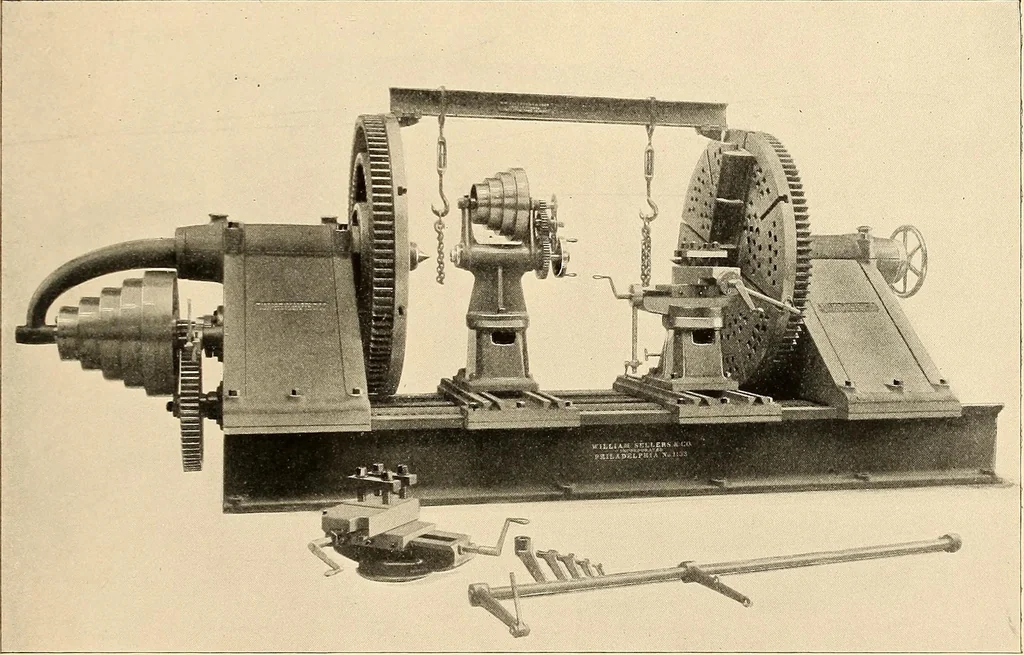

crank-pin boss and wheel hub. The Splining Attachment. This consists of a large opening nut attached to the under surface of one ofthe saddles, so as to connect it to the driving shaft which is threaded for that pur-pose. The rotation of the shaft causes the saddle to move a planing tool backand… … 66 WHEEL-TURNING LATHE. Two compound slide rests, self-acting feeds in all directions ; will swing60 over the saddles. Height of centres over bed, 33 >2. Heads set over tobring cutting strains within bed. Maximum distance between face plates, 8 ft.6. Largest lift of cone-pulley, 29 for 4^^ belt.…
