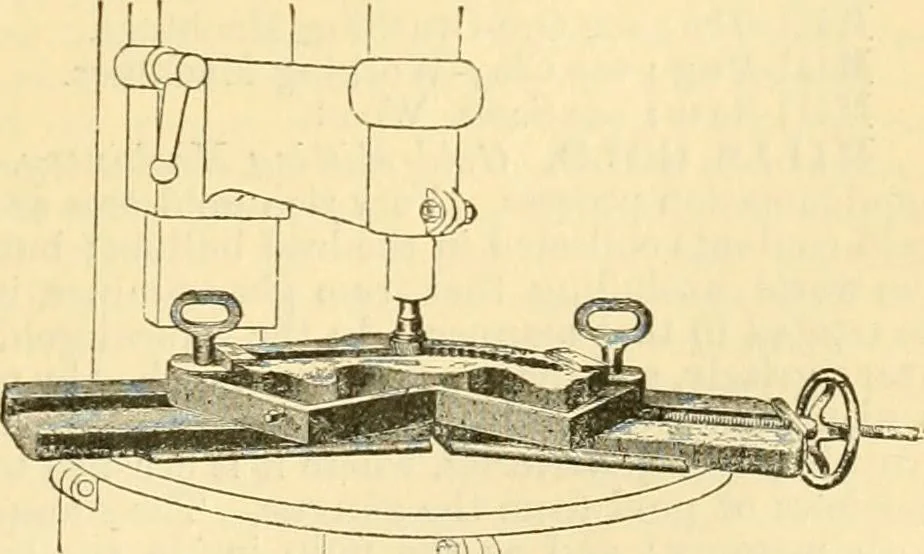

spindle be-ing driven by beveled gears and a transverseshaft. The cutting or grooving is performedby a face-milling cutter inverted in the endof the spindle, and is fed up and down bymeans of a screw and small wheel, and whenthe proper depth for a cut is reached thehorizontal movement of the… … Fig. 13. -Link miller and slotter. machine (Fig. 13), built by Pedrick & Aver, of Philadelphia, is used as an attachment eitherto a heavy milling-machine or a strong drill-press. It will mill out links to any desired ra-33 514 MILLS, GOLD. dius. It is designed on the principle that the apex of…
