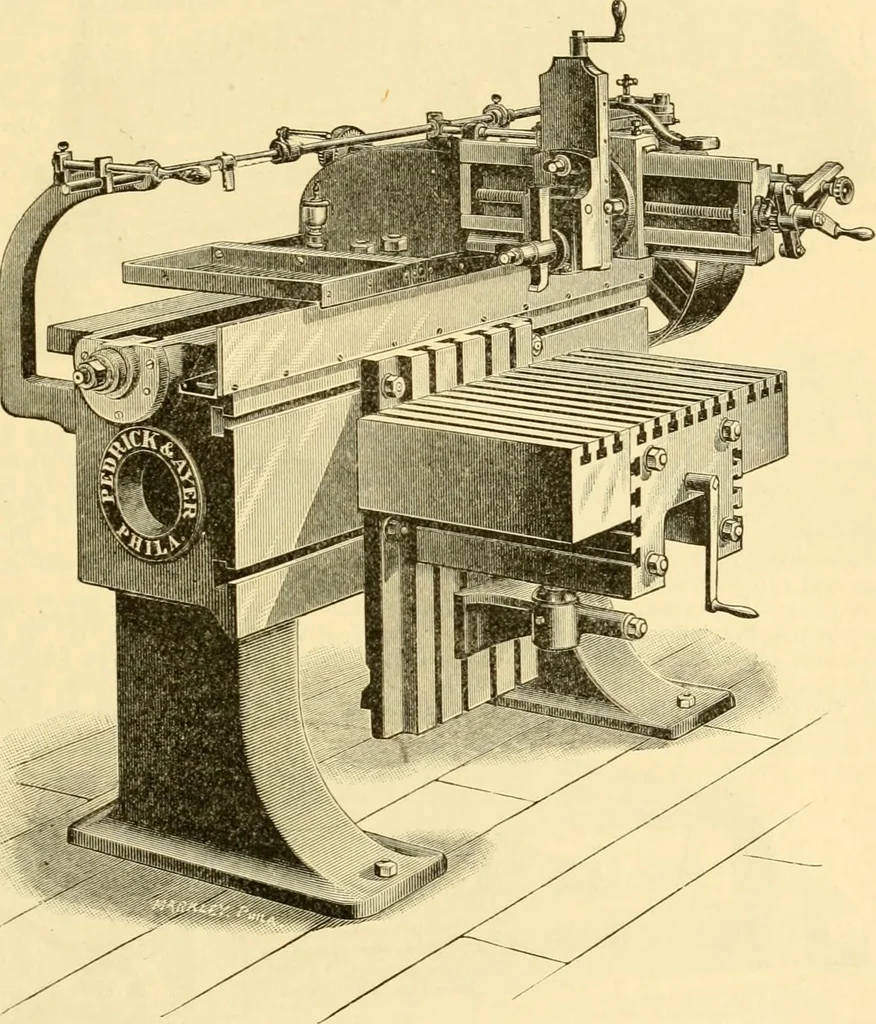

tool is converted into a standard open-side planer, as represented. Thegeneral design of extension planer is similar to the standard open-side machine, exceptthat certain parts are made heavier to meet the increased capacity, and to accomplish theadditional work which it may be called upon to… … Fig. 4.—Open-side planer and shaper. heads with automatic feed can then be used for planing angles on segments. When onceset at desired angle, any number of segments can be planed uniformly and accurately. Acentre head on the beam may be used simultaneously with above to face off the jomts of…
