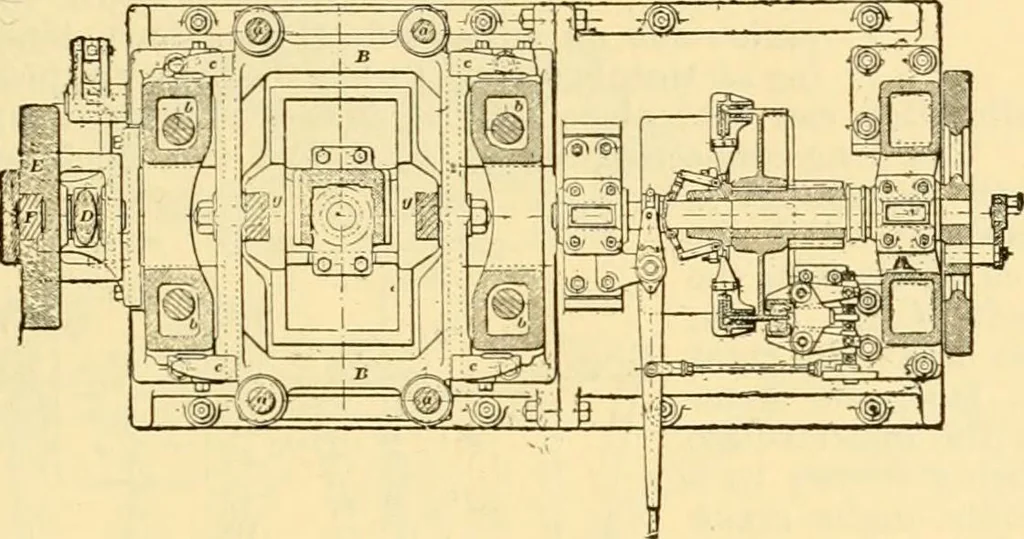

T^ \ 1 I I Fig. 3.—Toggle press. Elevation. 1 P \ ] I 1 TPiG. 4.—Front elevation. used -with it are made with due regard to the behavior of the metal worked in the drawingpress. Many comparatively thin and light articles, which have heretofore been cast, are PEESSES, DRAWING. 667 … Fig. 5.—Toggle press. Plan. now being drawn out of sheet metal, and the drawing process is found to have so manyadvantages peculiar to itself that the limits within which it is applied are constantly beingextended. A recent example is afforded by the machine shown in Fig. 3, designed and built by…
