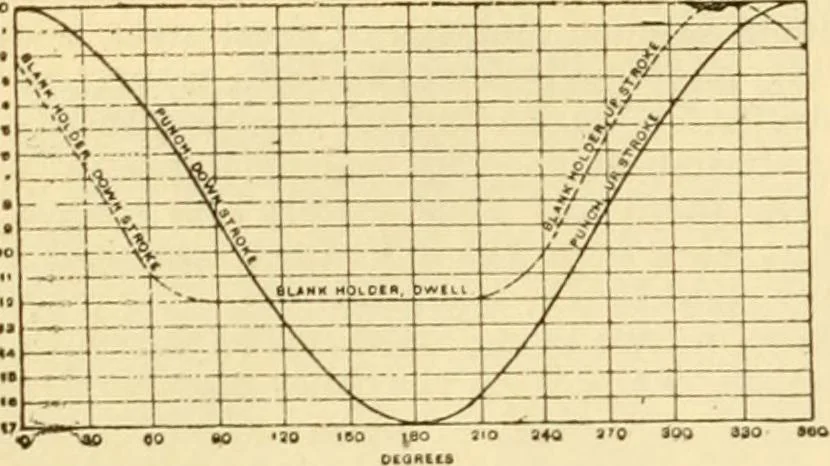

Fig. 6.—Toggle press. Elevation. 668 PRESSES, FORGING. … Fig. 7.—Pres^s diagram. -TTl-. by its pressure prevents any kinking or buckling of the sheet. It is important to secureeven pressure all about the blank, and this is i)rovided for by makinjr the blank-holder intwo parts, and putting in tlie four screws, «, a, a, a, one of which being i)laced at…
