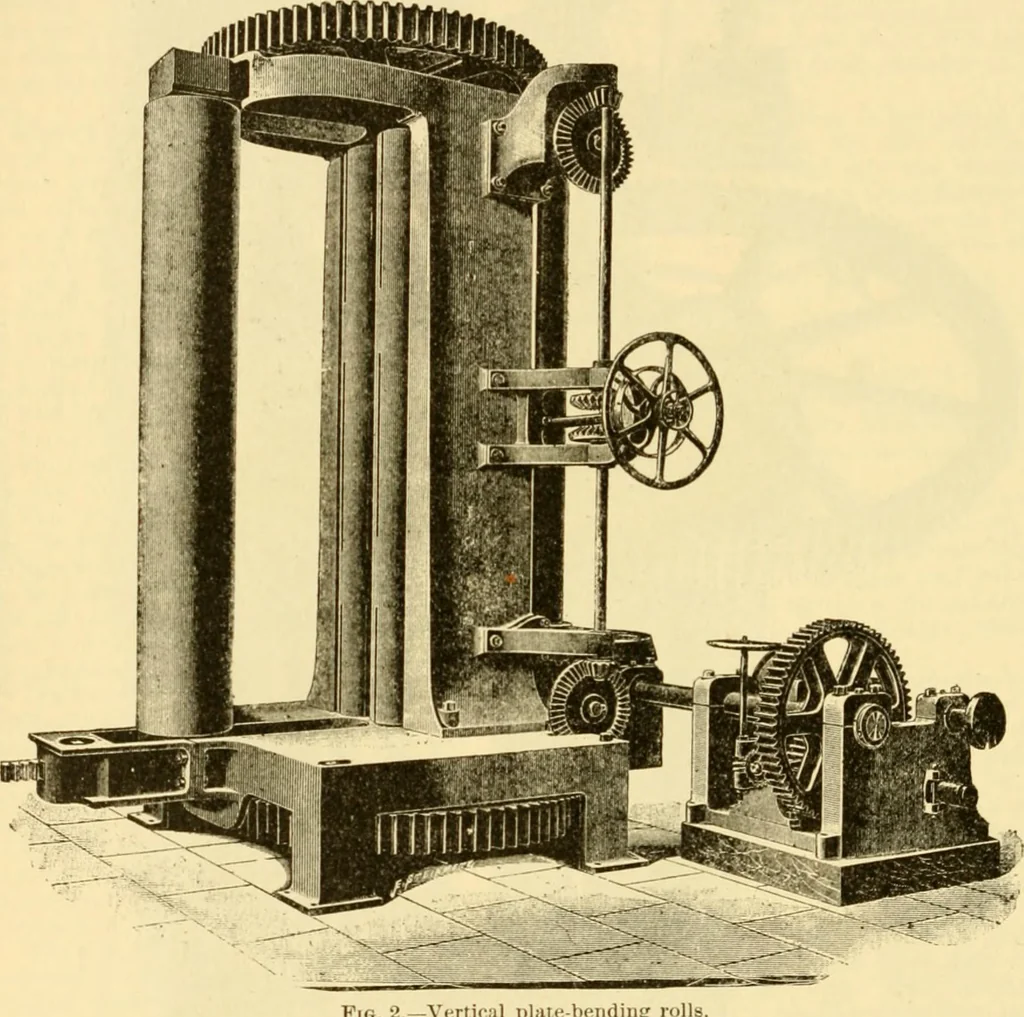

of bending a steel plate 10 ft. wide, lA in.thick. The bending roll, 18 in. diameter, and the two side rolls, 15 in. diameter, are carriedin heavy plate housings, and so united as to embody great strength, and at the same timeleave the front of the machine unobstructed for thefrce curvature of tlie… … Fig. 2.—Vertical plaie-beiidiiig i< pair of independent engines, controlled by convenient levers, and so arranged that the twoends of the rolls mav be adjusted together or independently in either direction. The drivingwheels at the bottom of the side rolls are of steel, while the bending roll…
