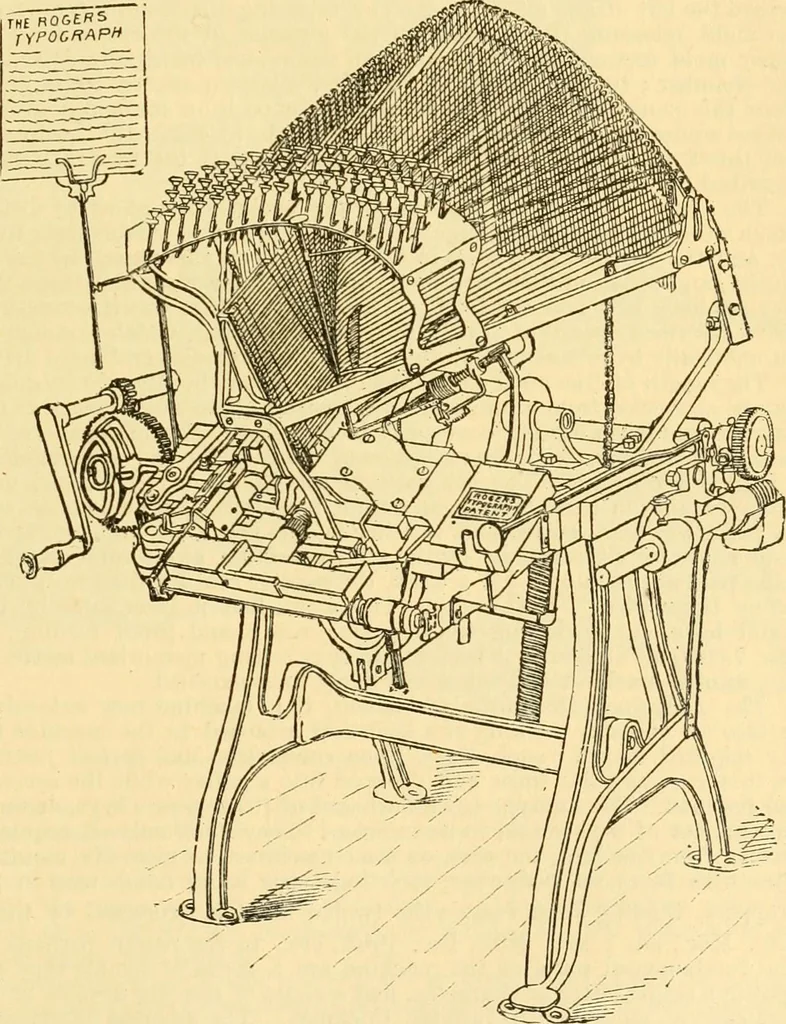

cticallycontinuous. The justificationis accomplished by therotation of a rockingcomposite-disk of cir-cular form, which attheinitial point isthin-ner than a three-emspace. By the use of anoff-set in the type baritself, the justificationis done at the point ofcontact by the justi-fiers with the… … Fig. 2.—The Rogers typograph. 874 TYPESETTING MACHINES. the various wires and matrix bars is swung down into f)Osition. with its front k^p resting ona base formed on the center shaft, as see^i in Fig. 3, and the compressing arm is swungto the left of the path of movement of the matrix bars ; the…
