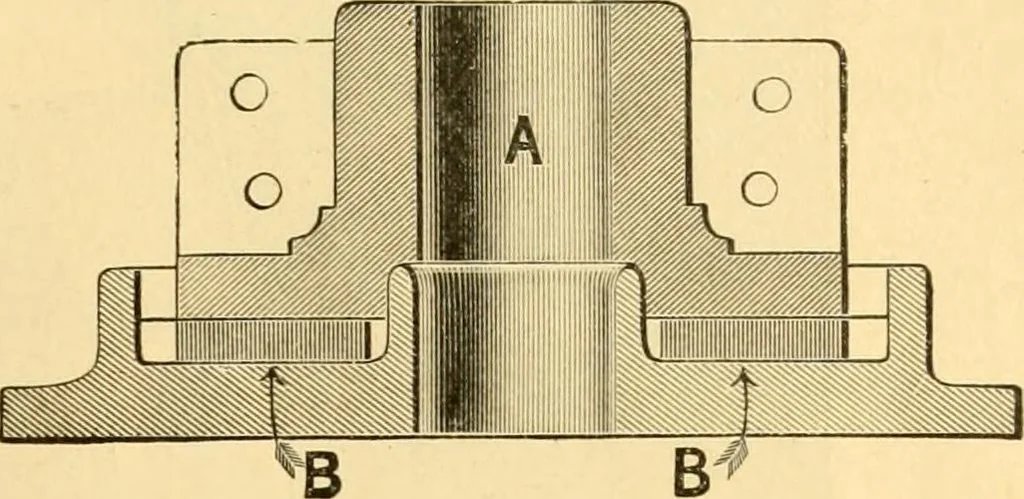

minute^ Mr. Geyelin has devised a novel and effective form of glass suspension stop whichIS Illustrated m cross section in Fig. 6. The revolving disk, A, which supports the wheel,rests on the glass disks, £ £. ° > > i-i WATER WHEELS. 895 … Fig. 6.—Glass suspension stop. The Hunt Wheel has since been improved by the addition of ajutages to the gate,bringing the half-water effect up to 66 per cent. These ajutages are shown in Fig. 7,appearing between the chutes. The next great step in turbine construction has been to setthem on…
