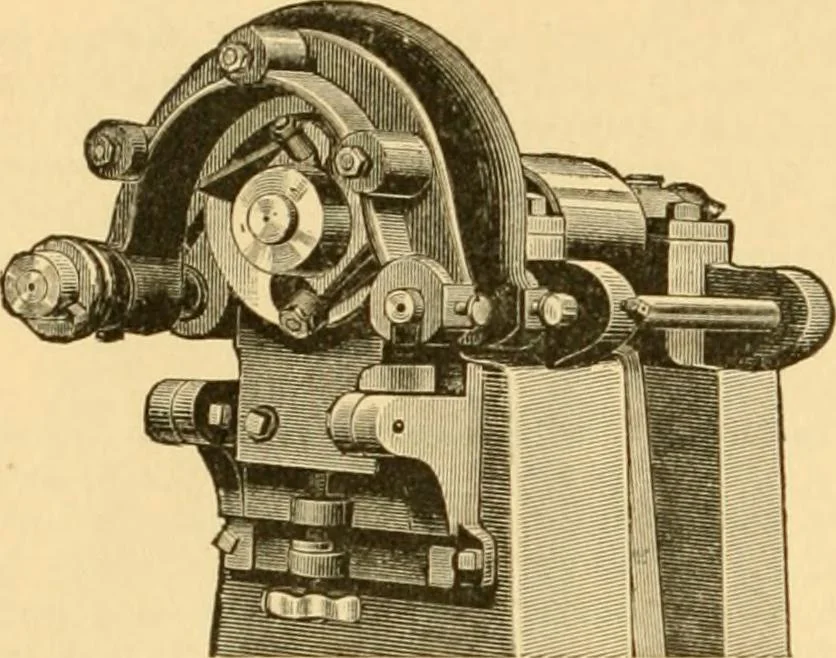

he sideor vertical cutter housings are so arranged that the outside cutter liead, which planes theinner side of the felly, remains fixed, while the inside one, which planes the tread, can beadjusted for thickness. A FtUy-rounding Machine made by the Bentel & Margedant Co. has for a frame aheavy… … Fig. 1.—FuUy-roiuuliiig macliine. belt coming in the space between, and the mandrel j)ulley between the two journal boxes.The tifjht and loose pulleys are outside of the frame, so that the belt connection may bomade from either above or below. There arc two horizontal turned bars, one each side of…
