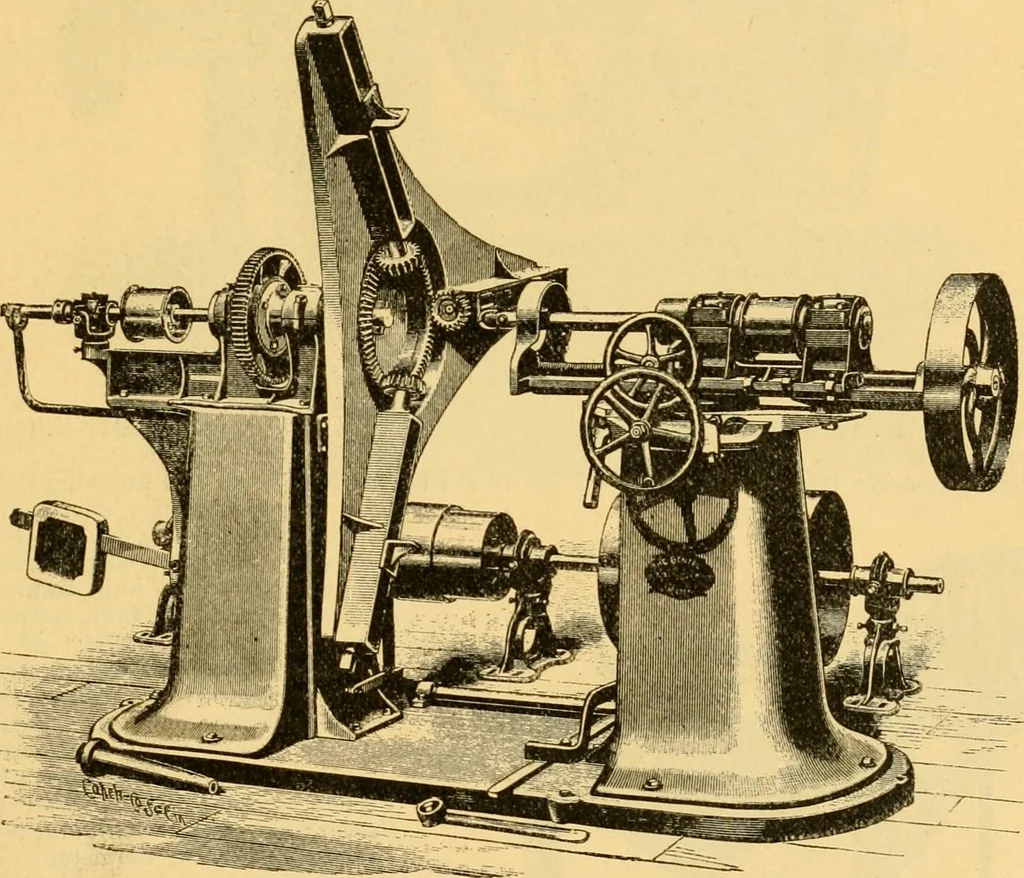

justable sliding bed plate on its center with a strongcircular turning slide, to which the long cutter-bar carriage is attached by compensatingrotating slides, permitting the carriage to be swiveled. By this adjustment the long cutter-bar slide on which the cutter-bar housings travel can be thrown… … Fi(i. (i. - Wheel-boxing machine. admits cutting wide, narrow, or angular sides or offsets inside the hubs. An eccen-tric clamp operated bv a lever on the inside of the machine at the end of the radialplate, changes from straight to taper boring. The cutter-head housing is mounted onthe long…
