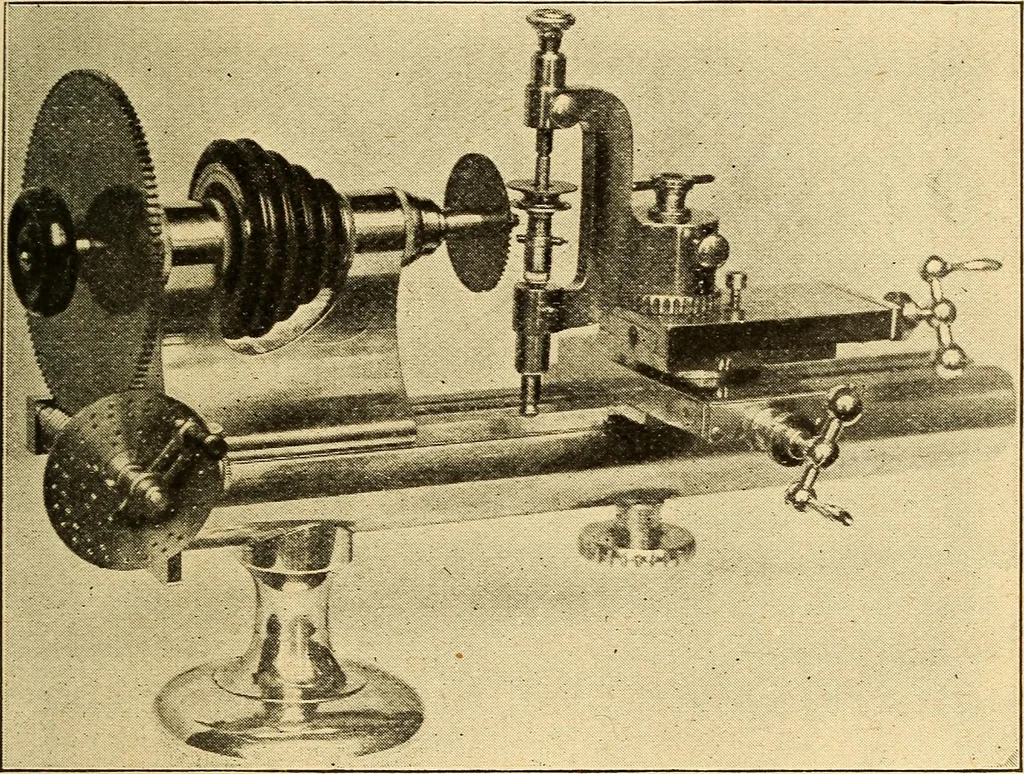

0 1 81 27 13 160 16 0 12 249 83 0 40 364 91 0 30 82 41 19 162 27 0 20 250 25 0 12 365 73 0 24 84 7 3 164 41 0 30 252 21 0 10 85 17 7 THE AMERICAN LATHE. 227 The method of attaching the wheel cutting fixture to thelathe will be readily seen by referring to Fig. 198. Particu-lar care should be taken… … Fig. 210. of the cutter should be put between the nut and the wheel,to be cut so that no unnecessary strain may come upon theteeth. The more firmly the work is secured the more posi-tive will be the truth of the cutting. Escape wheels forclocks will usually have to be cut with the fly or…
