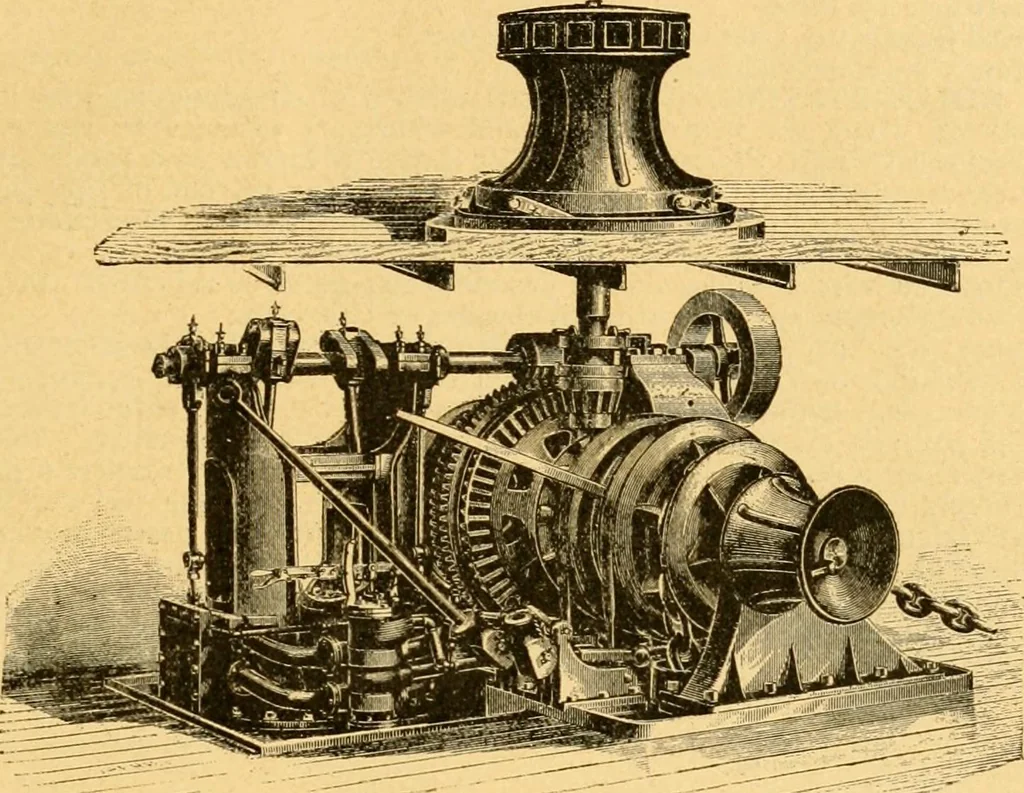

A pop valve permits escape of the liquid when the pressure in the Iarareaches 80 tons. The ram rises J, in. for everv rotation of the pump-driving eccentric haft. WINDLASS, STEAM CAPSTAN. Fig. i represents a new form of steam capstan wind-lass, manufactured by the American Ship Windlass Co., of… … Fig. 1.—Stejim capstan windlass. shafts. There is a steam reverse valve for reversing the windlass in case of jamming of theropes. The solid center bearing of the main siiaft is arranged close to the gearing, so as toprevent any springing of the shaft under sudden strain. It will also be observed…
