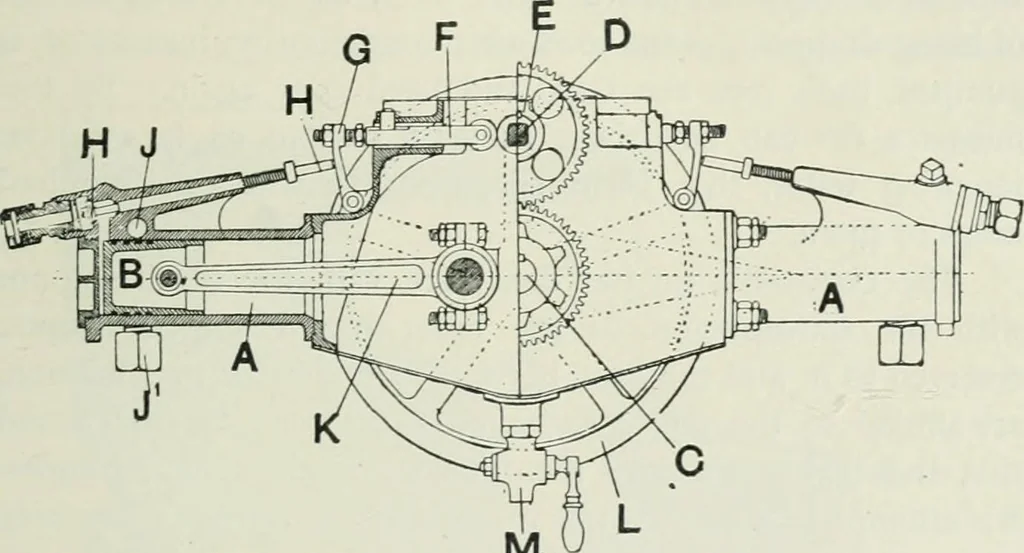

erated, and the engine is reversed by sliding anotherpair of cams under the rollers working the valves. A piston b STEAM CARS 277 drives the crank direct througii the connecting rod K, exactlythe same as in a petrol engine, l is the flywheel, and m a tapfor letting dirty lubricating oil out of the… … M Fig. 24Part sectional elevation of the Serpollet Engine The Turner-Miesse engine is identical in principle withthe Serpollet with the difference that, in place of having fourcylinders in opposite pairs, only three are used, and are set inline acting upon a three-throw crank-shaft, the cranks…
