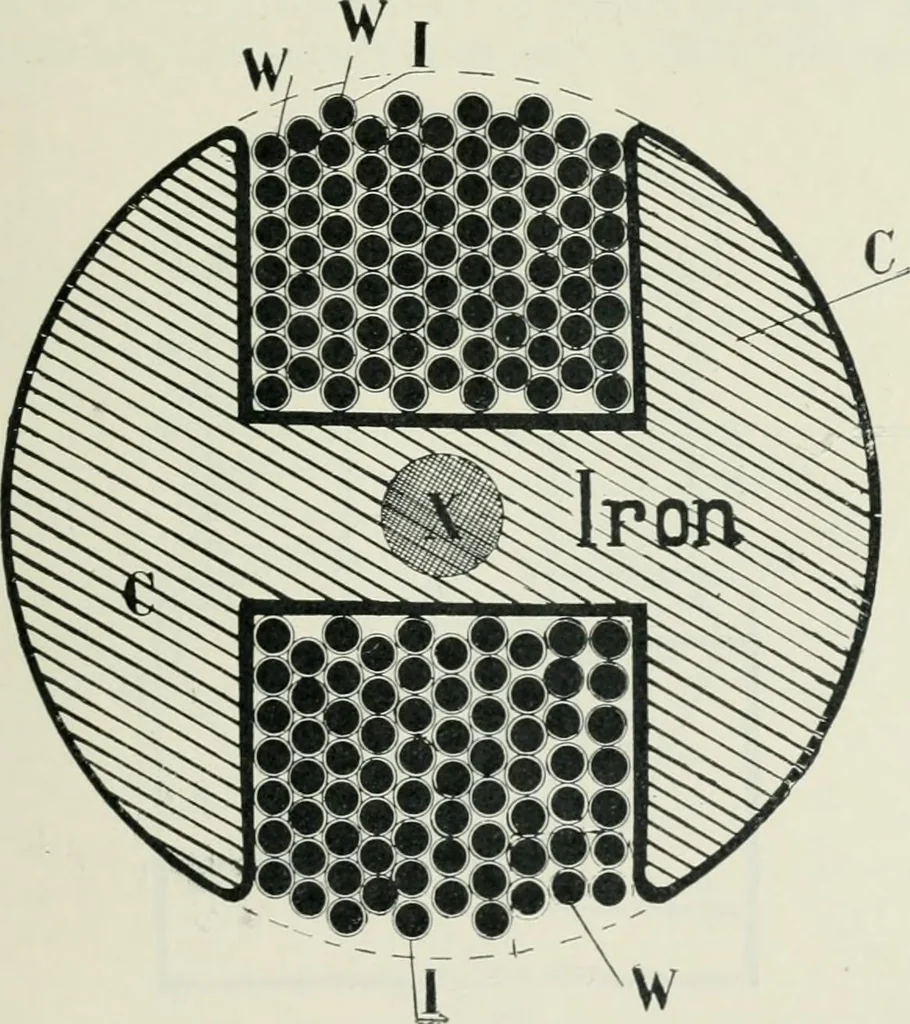

verymuch longer than it is thick, and really does resemble ashuttle. The two poles are formed by the sides of H. Instead ELECTRIC CARS 289 of arranging all the wire in a single winding, wc may distributeit over the surface of a soft iron cylinder, connecting it up tothe sections of the commutator.… … Figs. 2, 5, and 6 illustrate the three main types of thetwo-pole electric motors. Fig. 2 shows, as already ex-plained, a two-pole separately excited motor. This may belooked upon as a motor in whicli the magnet is renderedmagnetic by a current from a separate battery (a few accumu-lator cells…
