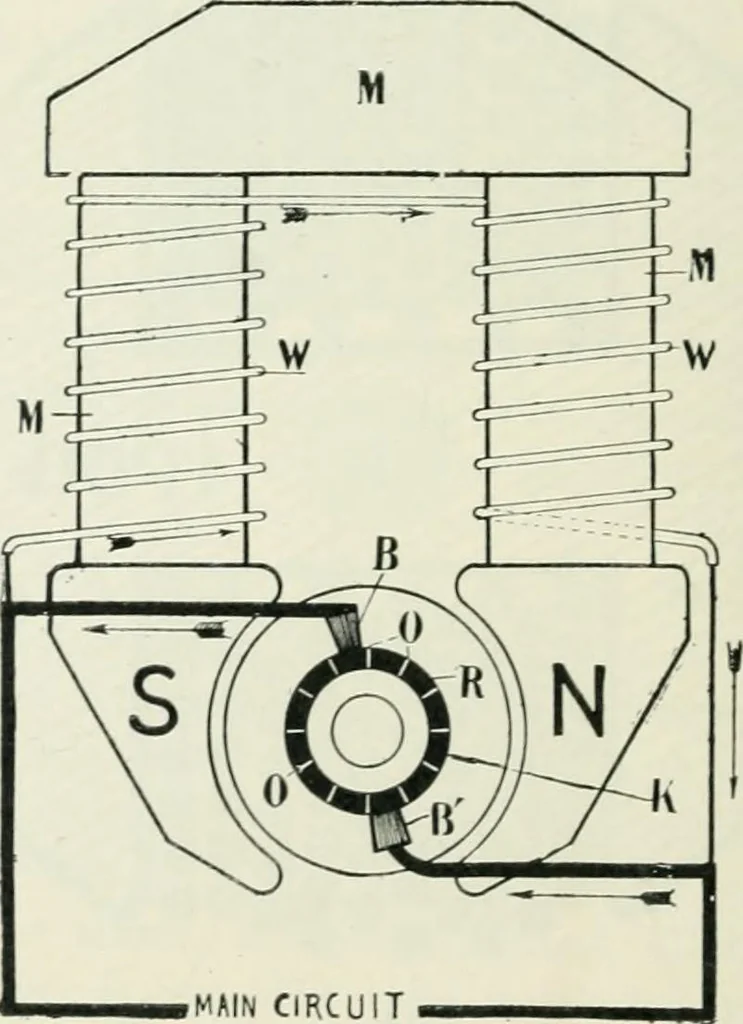

sand purposes it may be regarded as if the separately excited u igo MOTORS AND MOTOR-DRIVIAG magnet were a permanent hard steel magnet of the sameshape. The two other types of motor are the shunt-wound motor,fig. 5, and the series-wound motor, fig. 6. In the shunt-woundmotor the current, which is… … rMAIN CIRCUITfig- 5- coils wound on the field magnet. In the series motor thecurrent traverses the field winding either before or after pass-ing through the armature. There is a fourth variety of motor,known as the compound, in which the field magnet has bothseries and shunt windings. This type of…
