Unified S-band receiver-exciter subsystem (1968)

Bunce, R. C · leaf 15

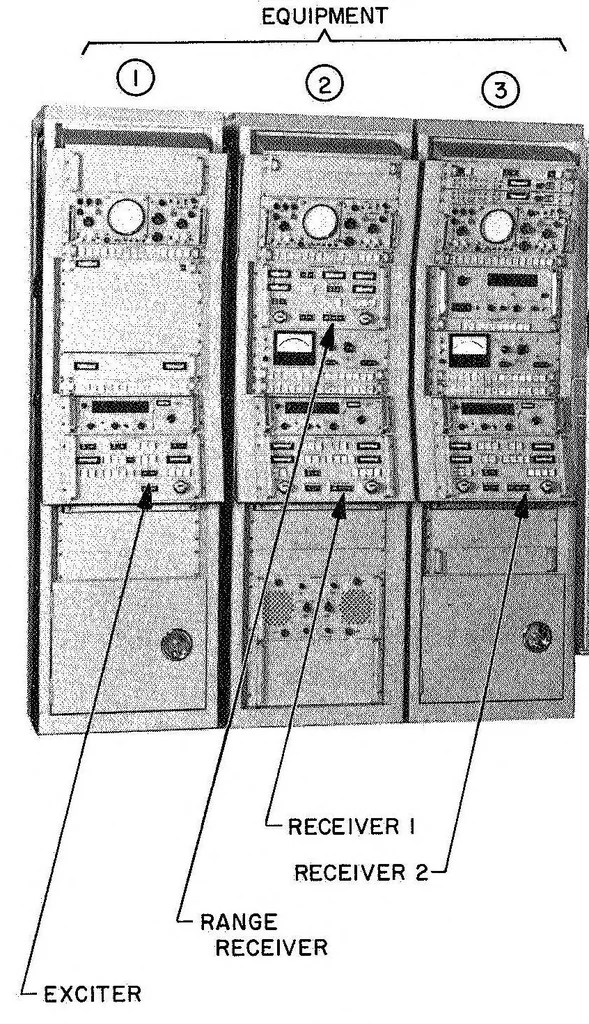

An illustration from Unified S-band receiver-exciter subsystem, 1968, leaf 15 — JPL TECHNICAL REPORT NO. 32-809- ANALOG INSTRUMENTATION CONTROL PANELS INTERFACE AND © . A , MONITORING EQUIPMENT … ■RECEIVER I EXCITER DOPPLER EXTRACTOR RANGE RECEIVER ISOLATION NOTE; RECEIVER 2 AMPLIFIERS AND FIGURES WITHIN CIRCLES ARE POWER SUPPLIES CABINET NUMBERS Fig. 9. Receiver-exciter subsystem components and functions 12

Mariner 5 space probe · Midcourse guidance · Spacecraft launching · Trajectory analysis · Countdown · Mission planning · Spacecraft guidance
