Naval architecture: a manual on laying-off iron, steel, and composite vessels (1898)
Watson, Thomas Henry · London; New York: Longmans, Green and co., [etc.] · leaf 106

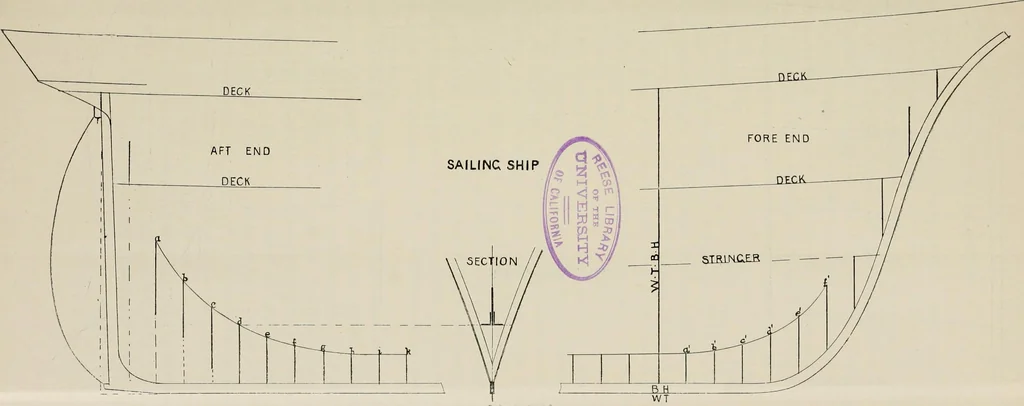

depth, shown by a dottedline w ■>■ on the midship floor ; and set these lengths along M X fromM, and drop perpendiculars from the points, like N n, equal to thewidth of the frame, which is the width of the floors at the ends, andseeing that the ends are all the same width, an1 may be drawn…
Naval architecture -- Handbooks, manuals, etc · Naval architecture · Ships, Iron and steel
