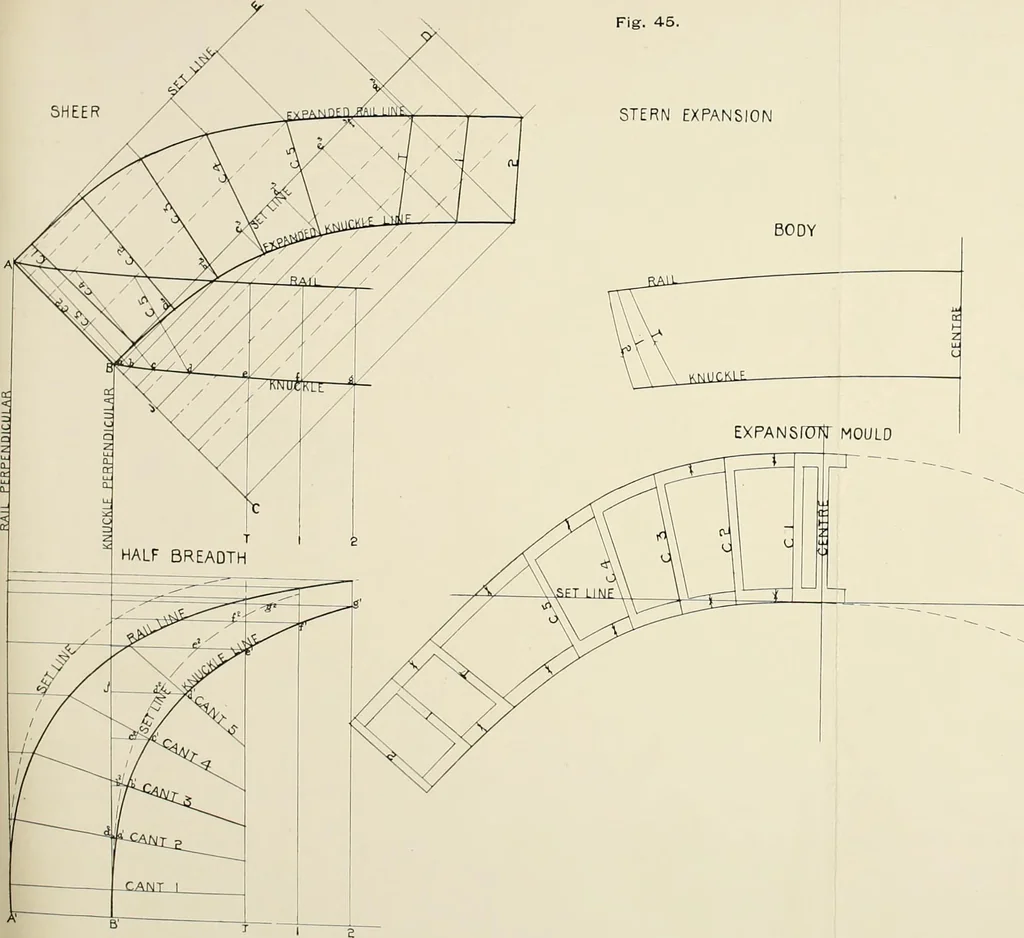

SHEER … \ \ / v STEKN EXPANSION. 51 STERN EXPANSION.How to Obtain the True Form of the Stern Plating.—In Fig. 45, produce A B indefinitely to C, and erect square set lines B D fromB, and A E from A. Join A to A1 and B to B1. Through the pointsa1, b1, c1, d1, e1,/1, and g1 in the Half Breadth, draw level…
