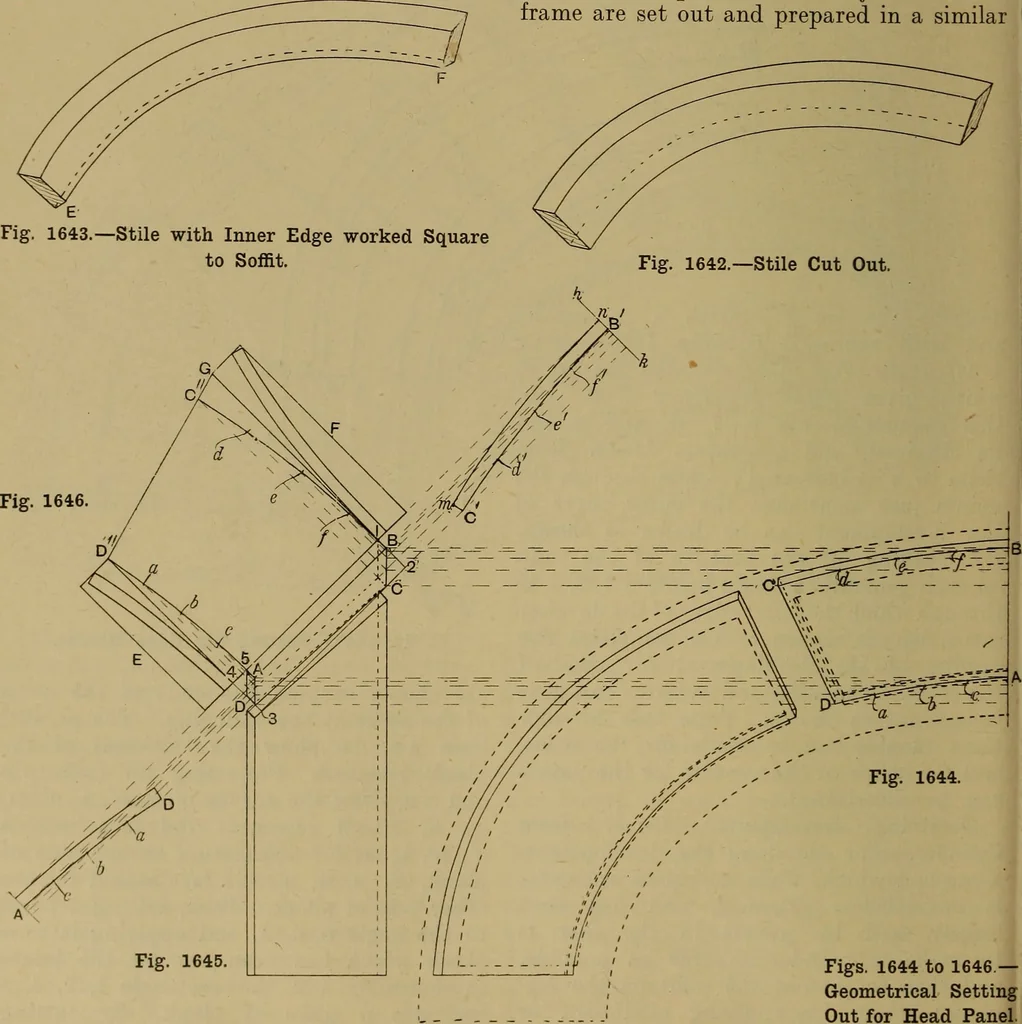

side of the plankas indicated by a b m n (Fig. 1641).Then the outer face mould can be appliedto the plank and marked as indicated bythe curves c k and d l (Fig. 1641). Thepiece for the stile can now be sawn out asrepresented at Fig. 1642.. A band sawwith a tilting table is advantageous fordoing… … Fig. 1645. Figs. 1644 to 1646 —Geometrical SettingOut for Head Panel. SKIRTINGS, DADOS, PANELWORK, LININGS, ETC. 501 manner. The curved stiles, having beenso far prepared, can be set out, and morticesmade for the rails, which are then ploughedfor the panels. The joints at the crownare most…
