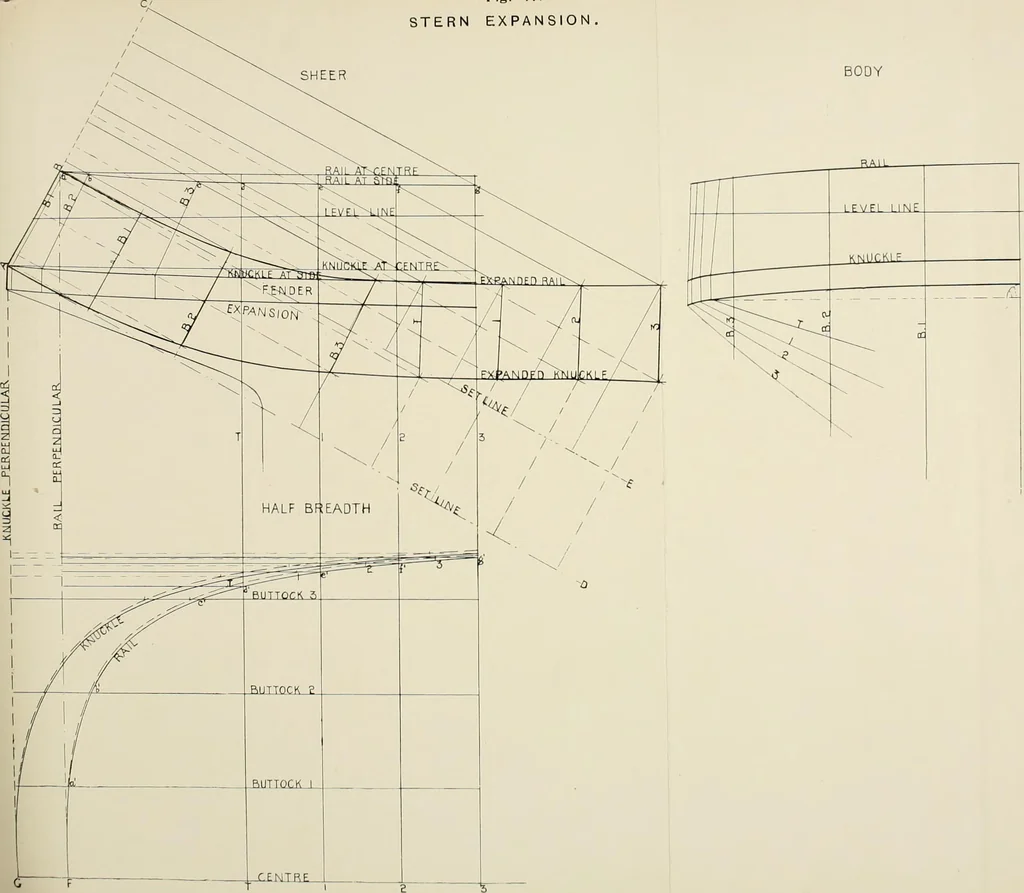

RAIL LEVF1 1INF DC Fig. 47.IN EXPANSION BODY … STERN EXPANSION. 53 of the cants and buttocks lifted and girthed round the expandededge thej should agree with the positions already indicated when theplan is correct. The butts of the plating are now arranged clear ofthe cants and the ordinary frames, and a skeleton template madeshowing the…
