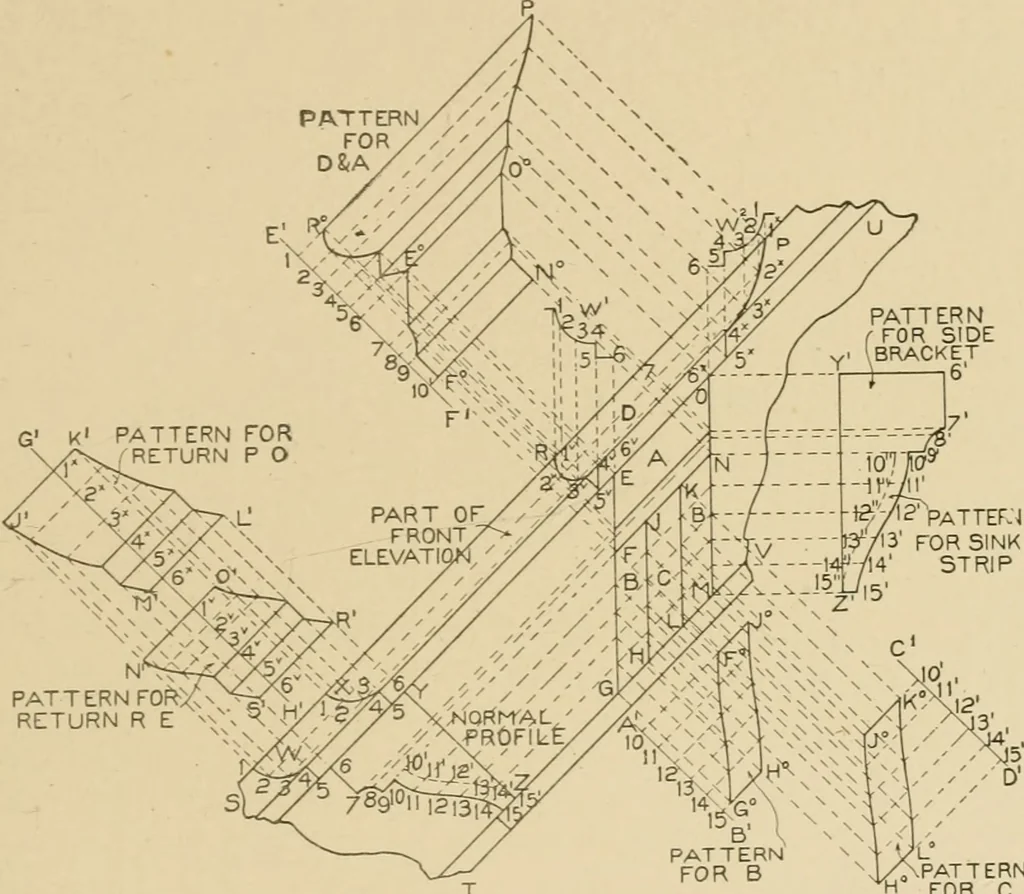

ly the true elevations, also 316 SHEET METAL WORK 231 the true profiles, for the returns at top and foot of the cap of the rakingbracket. Now di\ide the normal profile of the bracket into equal spaces, asshown by the figures 6 to 15, through which, parallel to E O, draw linesintersecting the normal… … WW -1-^/3 FOR SINK-14fyi4 STRIP PATTERN ^ Vk*^ FOR B ^IApaTTERN H FOR C Fig, 315. true profile for the side of the bracket on the lines OM and GE, pro-ceed as follows: Parallel to OjNI, draw any line, as Y^ Z^; and at rightangles to OM, and from the various intersections on the same, drawlines…
