Naval architecture: a manual on laying-off iron, steel, and composite vessels (1898)
Watson, Thomas Henry · London; New York: Longmans, Green and co., [etc.] · leaf 151

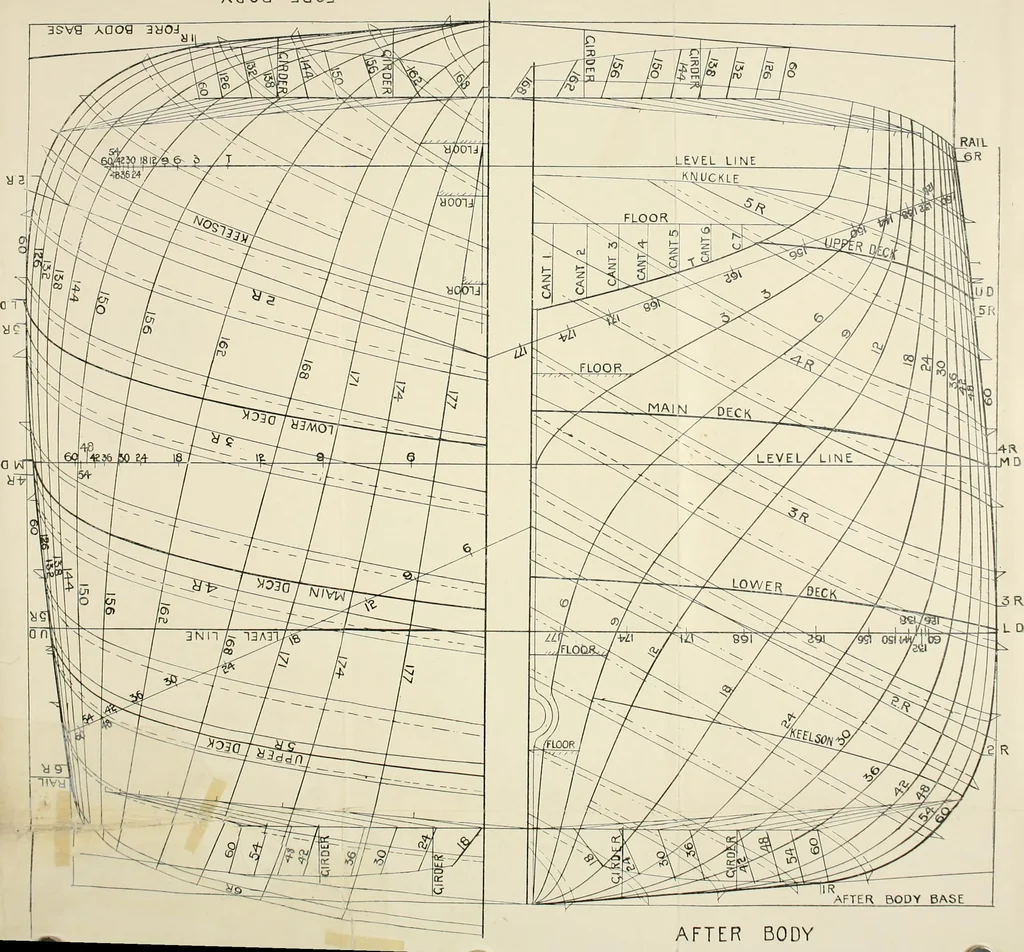

Fig. 48. AQOa 3MOJ … AFTER BODY SCRIEVE BOARD. 55 the diagonals ; also lift from the Sheer above the base the points ofintersection of the frames and buttocks, and the height of the afterframe feet on the inside of the stern post, and transfer them unto theboard on the buttocks and the half siding of the post…
