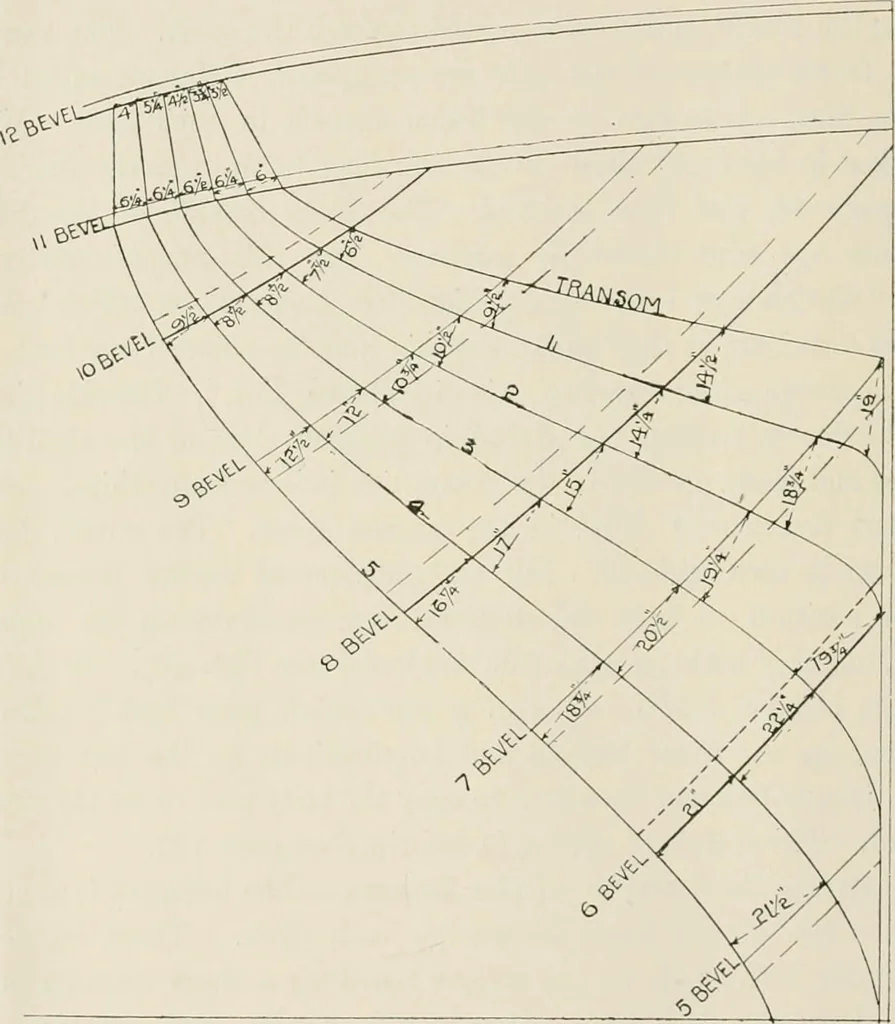

knee at the knuckle may be slightly below the inner bottom. 60 NAVAL ARCHITECTURE. on the centre line above the edge of the mould and number thepoints. Then scrieve the form of the midship frame, for the port andstarboard sides, on the mould ; setting in the line about | of an inchowing to the beam… … the centre right, and mark it in the same manner. This process isrepeated until all the beams of each body are scrieved on the mouldto the form of the frames. In Fig. 50 the mould is shown dotted inposition when lifting numbers 6 and 162. The centre heights are notnecessary when both sides of the…
