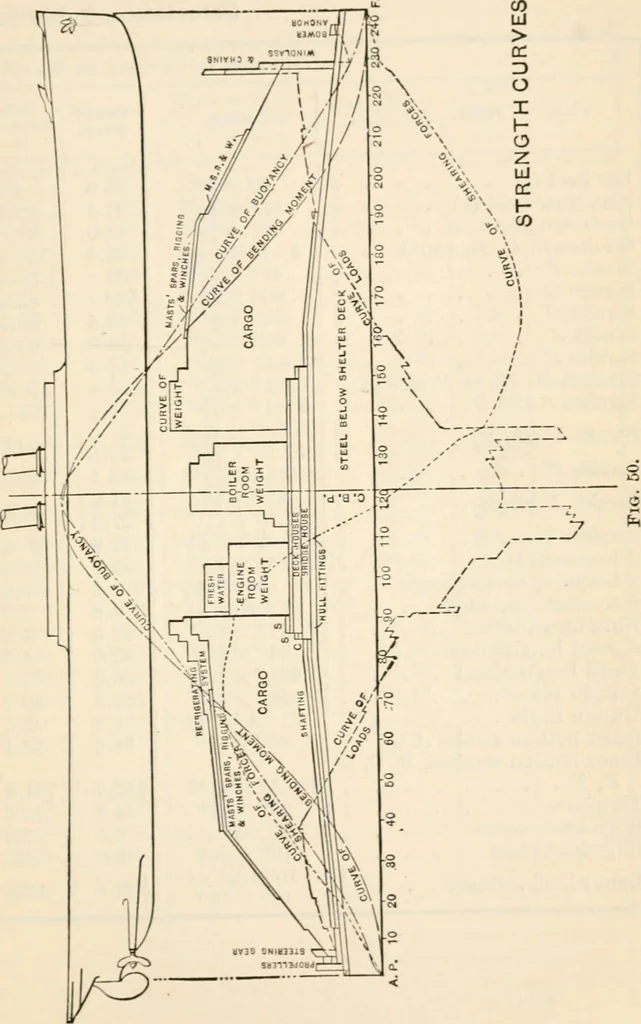

edby the curve equals the displacement of the ship. Curve of Buoyancy. The displacement in tons per foot of length is then calculated atsuitable intervals apart and set up as ordinates in the same man-ner as for the weight curve. The area enclosed by a curve pass-ing through these spots should also… … 180 The Naval Constructor Calculation Table for Moment of Inertia of Section Item. Size. GrossArea. Net Area = A. Sq. In. Sq. In. Bar keel (h) 6 x 3 18.0 14.3 Flat plate keel (|) . . . . 27 x \% 81.1 22.1 Garboard strake A . 48 — 2 0// ° 20 48.0 38.0 Strakes B, C, D, and E . . 4-51 X if 173.4 139.4…
