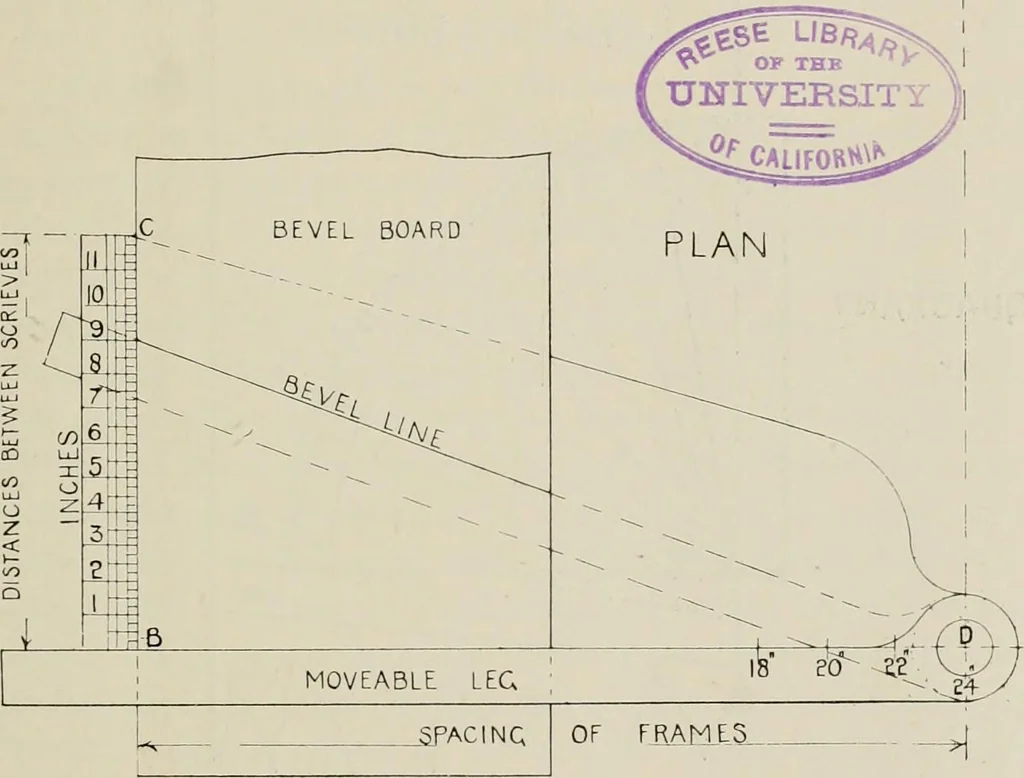

D to the correct spacing of the frames. On the edge B C is set off inches and parts of an inch,one already described. It is used in the same manner as the SCRIEVE BOARD. 65 Machine Bevelling.—Most of the large shipbuilding establish-ments have bevelling machines, standing in front of the furnace,… … to the lines on the bevelling board a quadrant with a projecting ledge,and obtaining the degrees you mark them with chalk on the dial placedon the front of the bevelling machine. Fig. 58 shows the quadrantset on the board to bevel 7, which is 20| degrees. It is onlynecessary to say that the bevels…
