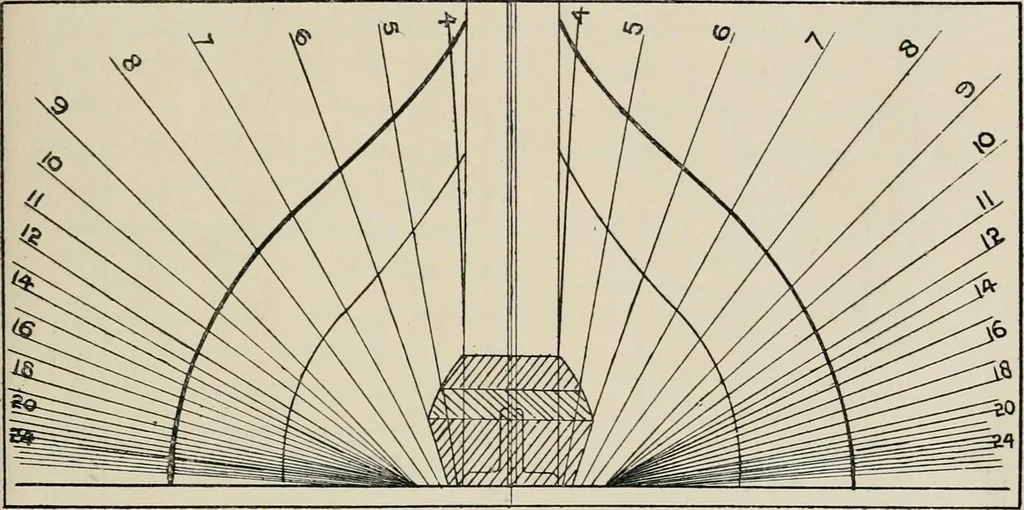

he frame holesare divided in and bored out. It will be noticed that only one hole isplaced through each seam in way of the frames, which is next to theoutside sight edges of the keel plate for caulking purposes. All the MOULDS. 81 keel plates may be marked off from this template, while the set… … Fig. 74.FORE BODY.
