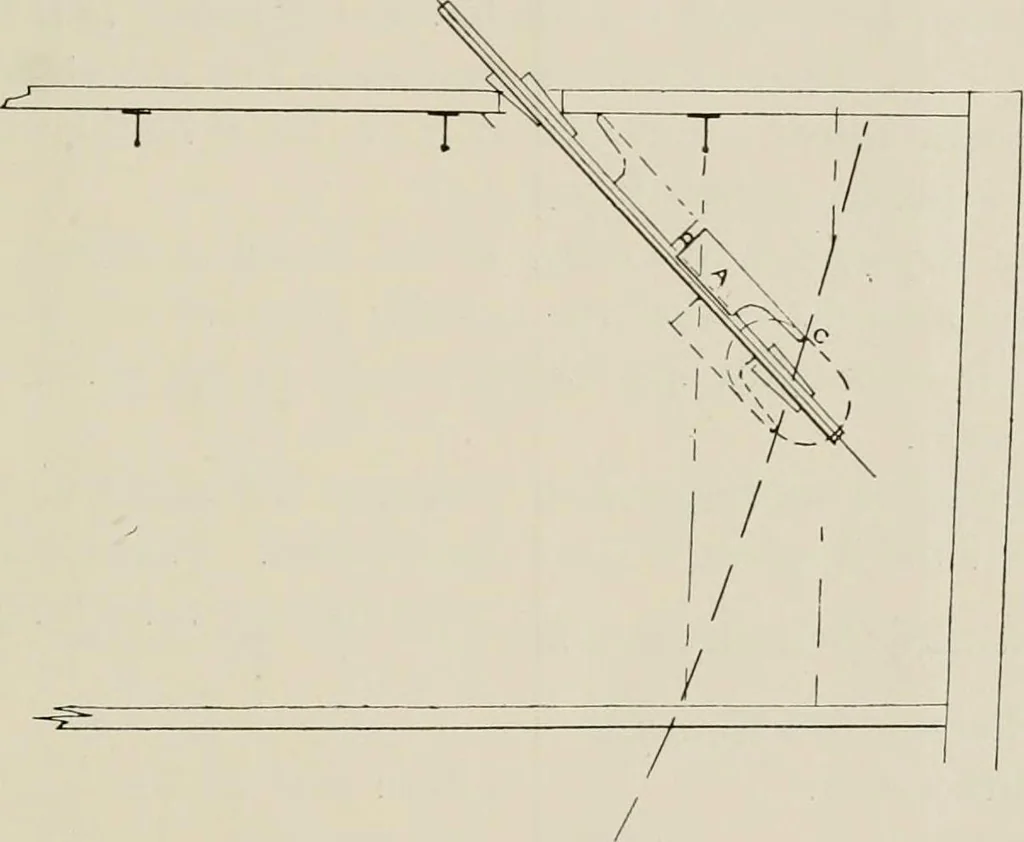

mthe outside of the vessel, and has a slight taper on the end put in first.When in position a thin layer of lead is tacked on the forecastle deckend, to show the line of the deck all round, which is the correctlength ; it is then drawn out and sent away to the foundry for castingthe pipe. Shaft… … elevation on £ inch scale as in Fig. 96, showing the floors and tanktop between the bulkheads. Set off at each bulkhead, in the elevation,the height of the centre of shaft and draw line in. Arrange thrustrecess at the fore end, in plan and elevation, usually of box form. Thetunnel crown just…
