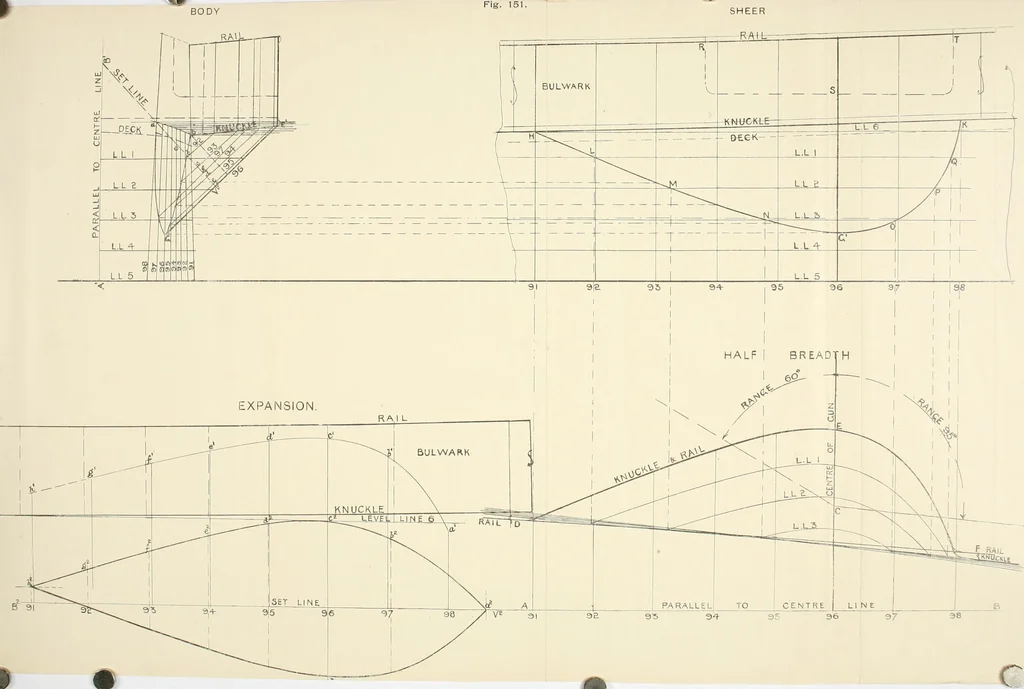

1ULA ( B UNIVERSITY WL\ ET Fig. 151. … GUN GALLERIES OR SPONSONS. 145 loftsman fits up section moulds on the sbip at each frame, fromwhich the platers make their own templates. This form may also bearranged at the aft end in the same manner.* Another form of End Gun Gallery—sometimes fitted.— Referring to Fig. 151, make A B and A1 B1 of…
