Naval architecture: a manual on laying-off iron, steel, and composite vessels (1898)
Watson, Thomas Henry · London; New York: Longmans, Green and co., [etc.] · leaf 370

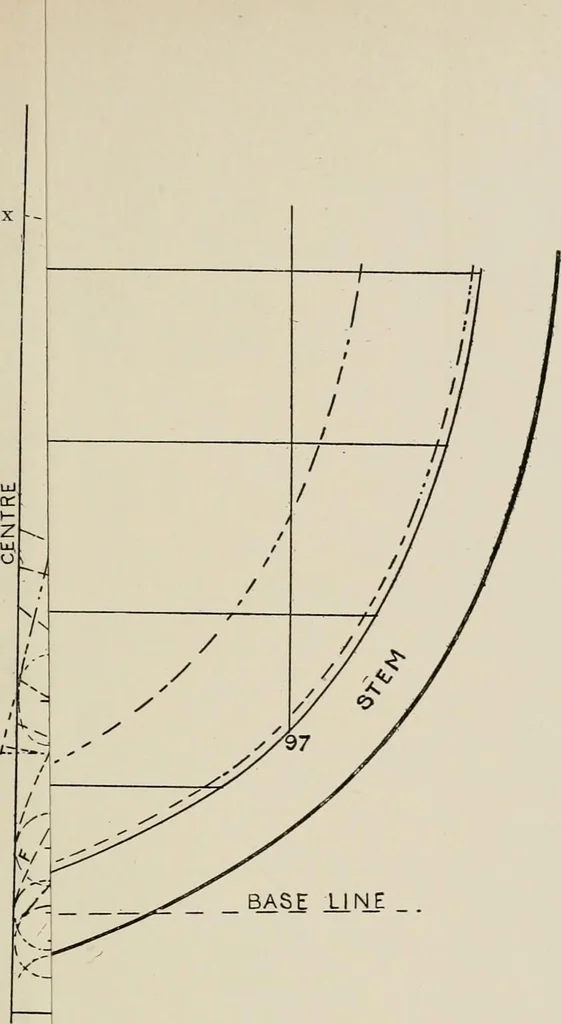

an and sections. A quick method is to set insquare to the outside edge at the several level lines and stations in theHalf Breadth the thickness of the plank -s t on say 90 frame, andtransfer the distance v s into the body s1 r1, square to the section. Bythis means a sufficiency of spots is got to… … ULL LINES-OUTSIDE OF PLANKING.DOTTED LINES-INSIDE OF PLANKING.
Naval architecture -- Handbooks, manuals, etc · Naval architecture · Ships, Iron and steel
