Naval architecture: a manual on laying-off iron, steel, and composite vessels (1898)
Watson, Thomas Henry · London; New York: Longmans, Green and co., [etc.] · leaf 371

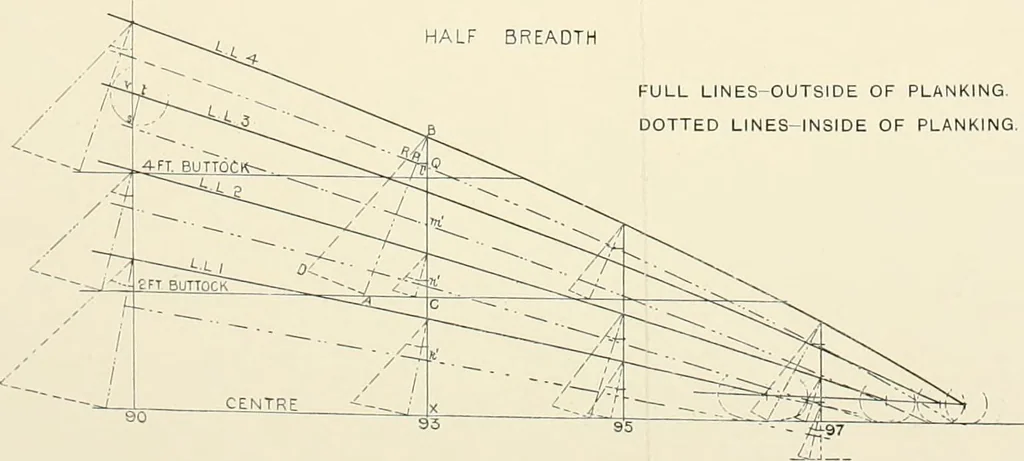

BODY. Fig. 157. SHEER. h B^L i I. h fs/ -:J prt. !/ / &s i f. LL4- *j— /^ L.L 3 / | / // / £7 L.L Z I/ / / / // /ii i > L L 1 ^ // / * / / /Y Ss ^S^ -%5 _^_^S_ _ BASE JJNE _ . \ READTH FULL LINES-OUTSIDE OF PLANKING.DOTTED LINES-INSIDE OF PLANKING. … COMPOSITE VESSELS. 155 A More Exact Method of Finding the Heel of the Frames. —This is given in Professor Rankines Shipbuilding, Theoretical andPractical. It is the one which has been adopted in large shipbuildingestablishments for many years. In Fig. 157, ILL is a level line showing the outside of…
