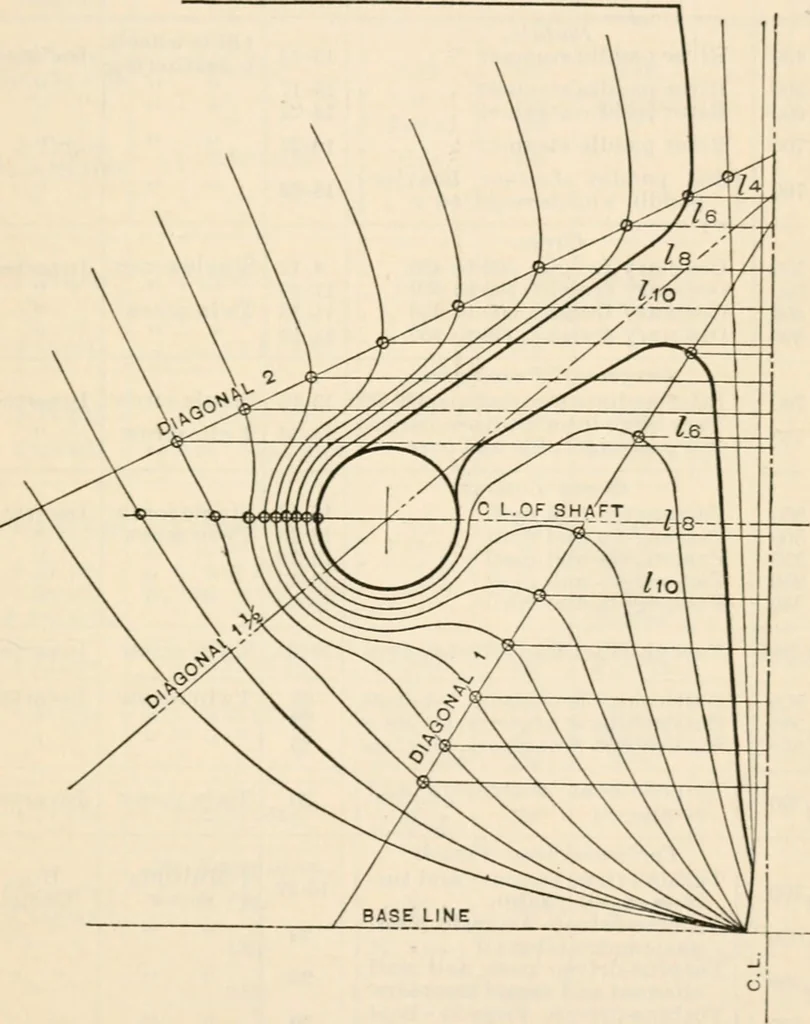

rawn in, in accordance with theform advocated under that heading. Having outlined the form of bossing on body plan, three diago-nal lines should be struck, the lower one intersecting the arcsforming oxter under spectacle frame, the middle one through the B OSSlIli 59 center of shaft, as shown to… … Fig. 17. usual way on half-breadth, faired up, and retransferred to bodyplan, thus permitting of same being more accurately delineated,as it will be remembered these were originally drawn freehand. 60 The Naval Constructor Elements of Piston Speed. Class of Steamer. r I-1 0 3 t- A H ago Ft. perMin.…
