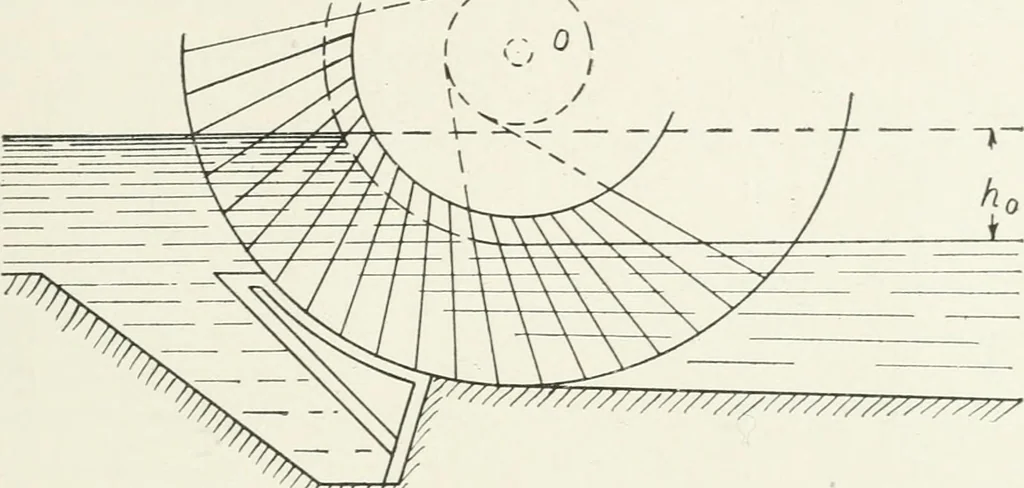

described. WATER-POWER DEVELOPMENT 55 G7. Sagebien Side Wheel. The l)iickets of this wheel (Fig. 34)are formed In- flat vanes which are tangent to the horizontal cyhnder0, whose axis is concentric with the shaft of the wheeL The depthof the l)ucket-ring is relatively large, and there is no… … ^^^^yy^/////y//y///////////yy///yy/y 7777777/Fig. 34. Sagebieu Side Wheel. channel are continued dcnvnstream to the point where the wheelleaves the tail-race. There is very little work done by the water onthe vanes beyond a point vertically below the center of the wheel.The inclination of the…
