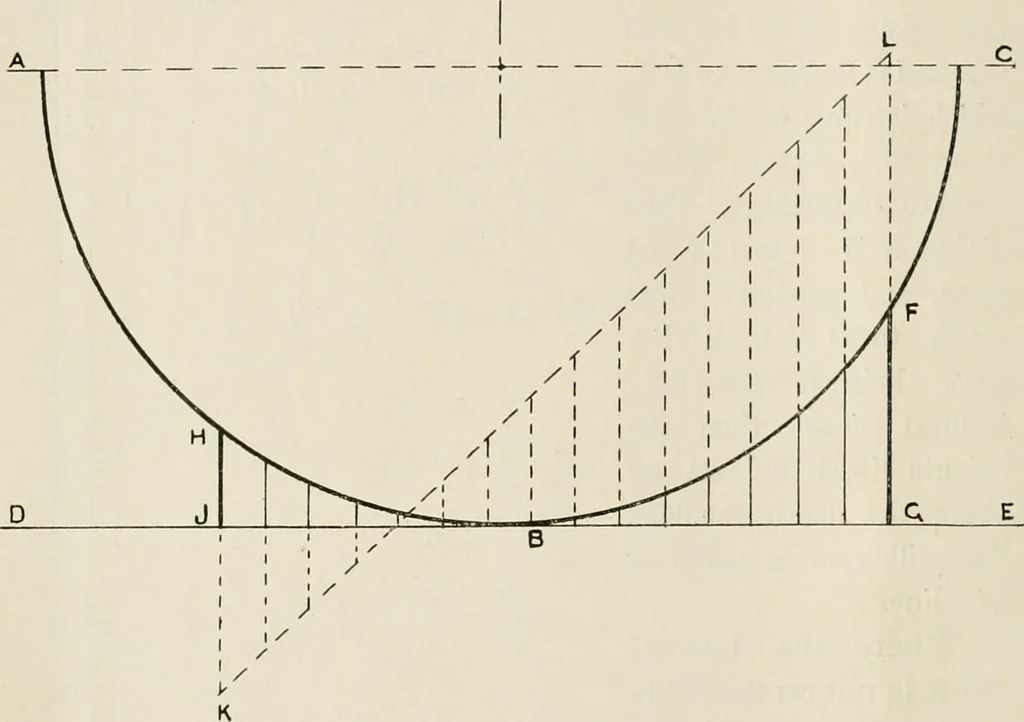

nts to meet their corresponding lines, theheights of which set off above depth moulded line in the Sheer,which gives you required line. Another Method of Sheer Diagram is to draw a quadrant ofa circle, H J K in Fig-. 16, with K J equal to the greatest sheer, anddivide the arc H J into 8 equal… … Ready Method of Finding Sheer Points, which is easilydone and of considerable use on small scale plans, is to draw a semi-circle, ABC in Fig. 17, to a suitable scale for the intended plan,and of greater radius than the highest sheer point. Then find apoint F G between D E and circle line taken…
