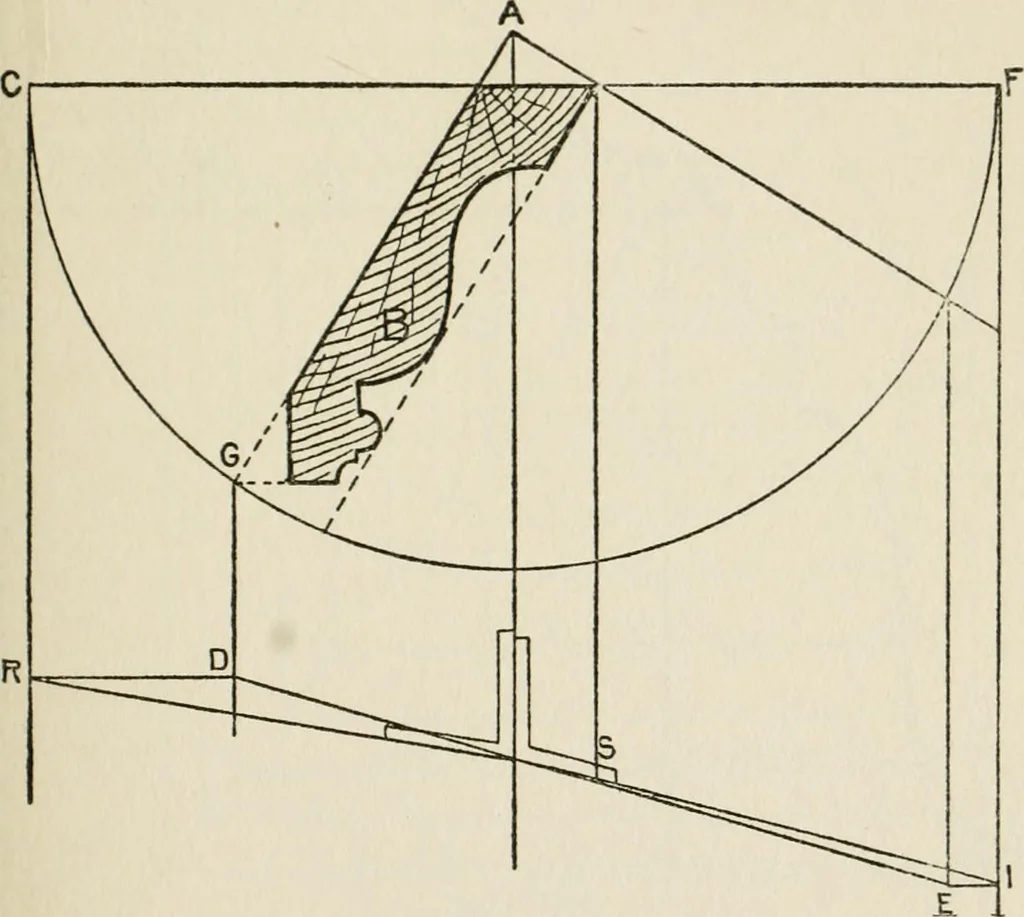

r rectangle to a polygon with any numberof sides. Fig. 188 shows the manner of finding propor-t ons of a small moulding which is required tomiter with a larger one, or vice versa. Let AB be PRACTICAL CARPENTRY 243 the width of the larger moulding, and AD the widthof the smaller one; construct with… … FIG. 187 to BC cutting the line AC, from which points drawlines parallel to DC and beyond the line AD.From the latter set off the thickness of the mould-ing on the corresponding Hnes as 1-2 will give thecontour of the mould for the lesser width or viceversa. 244 PRACTICAL CARPENTRY To Obtain…
