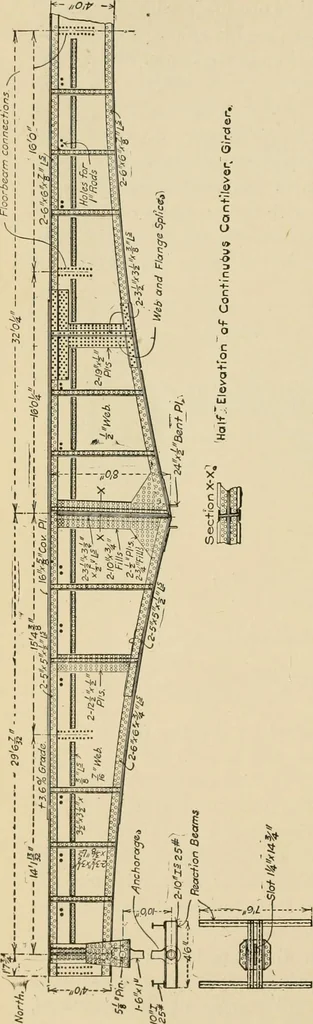

langes. The anchor ends of the girders have verticalside plates riveted to the end web-stiffener angles, and projectingbelow the lower flange, where they have horizontal flange anglesand base plates riveted to them to form pedestals for the seat onthe masonry. The pins through these pedestals… … Materials and Details of Girder. At the trestle bents the floor-beams are web connected to thewebs of the post channels andare seated on long solid-web knee-braces. The intermediate floor-beams are web-connected to themain girders, and the upper cor-ners are sheared at an angle of45 degrees to…
