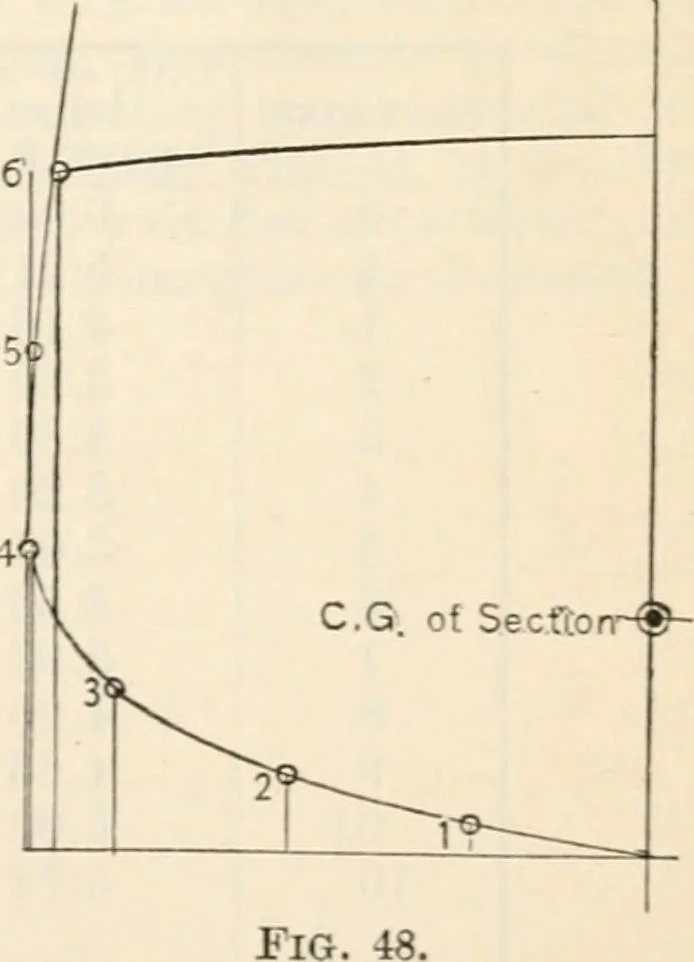

ths of each sectiona spot every two feet apart, as shownon Fig. 48. dropping a perpendicularline from these locations to the base.Measure these heights above the baseand tabulate them for each section,calling the centre line 0 as in thetable. One side only need be dealtwith, as the ship is… … 176 The Naval Constructor Section No. 5. Station. Heights. Multipliers. Functions. 0 l 2 1 .6 2 1.2 2 1.3 1 1.3 3 2.4 2 4.8 4 4.1 1 4.1 5 6.1 2 12.2 6 8.2 1 4.1 • • ■ 9 )27.73.07 £ ,.07=C.G. of No. 5 above base. mined, these centres are then tabulated and the common centre ofgravity found by a…
