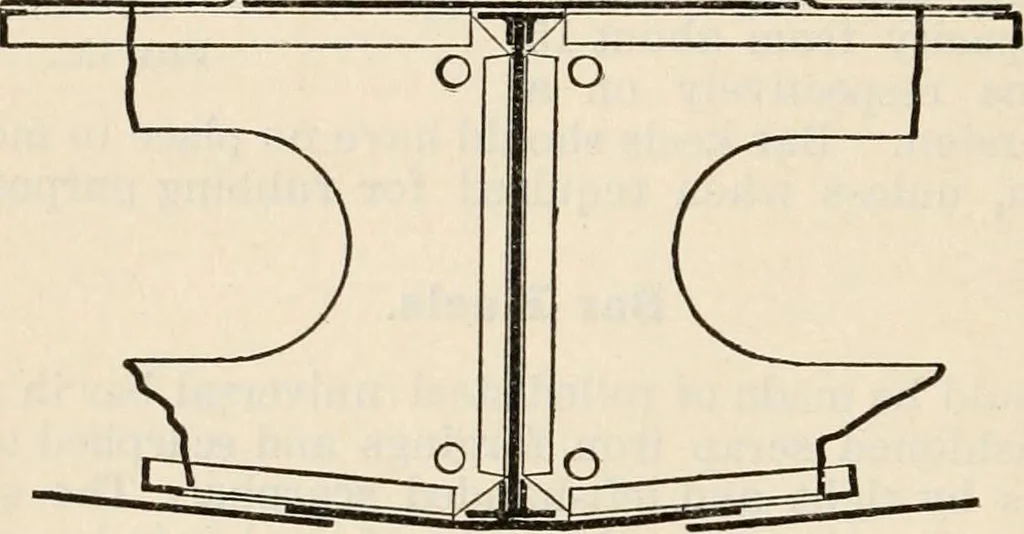

care in keepingclear of the radius of garboard plate and also the caulking edge ofsame at bottom, which is raised about half an inch from lower edgeof bar. For this reason it is advisable to set off the bar fullsize, drawing in the flanges of garboards before fixing on centresof rivet holes. Flat… … Fig. 134. shows a very efficient and economical form of flat plate keel andcentre keelson devised by the author and designed with a struc-tural /section for small and moderate sized vessels with ordinaryfloor construction. Where a suitable I section is not obtainablethe same construction may be…
