The naval constructor: a vade mecum of ship design for students, naval architects, shipbuilders and owners, marine superintendents, engineers and draughtsmen (1904)
Simpson, George, 1865- · New York, D. Van Nostrand company ; London, K. Paul, Trench, Trübner & co., ltd. · leaf 292

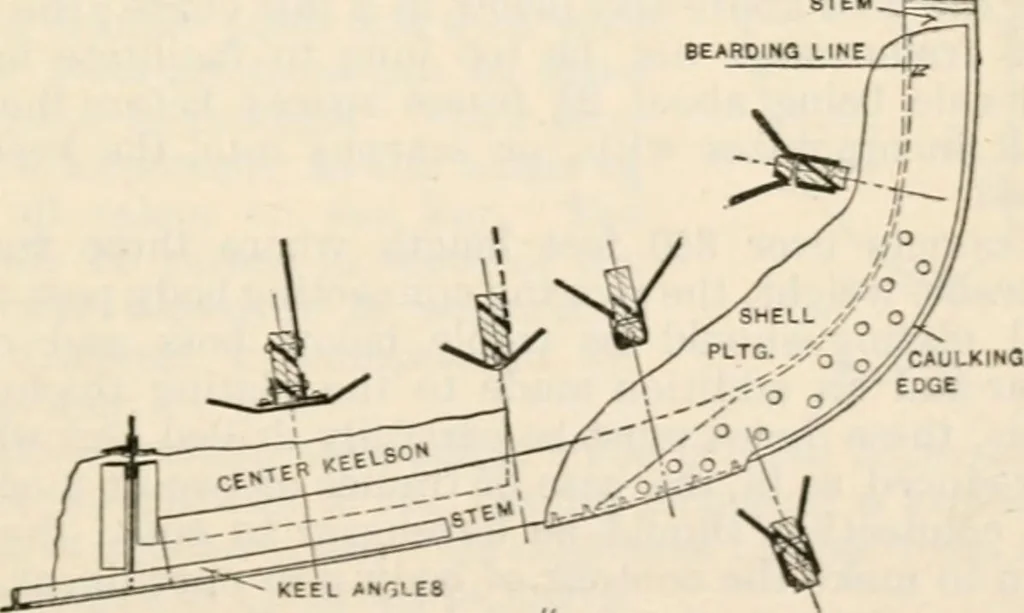

Fig. 13G. STEMS. The remarks on bar keels apply equally as regards details tostems. The classification societies rules allow a reduction in -H- STEM.BEARDING LINE … MLO. ]/j BREADTH OF FLAT OF KEEL/ STEM OF UNIVERSAL BAR T— -r / 3.-—— 137. 278 The Naval Constructor sectional area at stem heads, but as the practice is now to make thestem from universal rolled bar, it will prove no economy to taperit. The usual method of connecting lower part of stem to…
Shipbuilding · Marine engineering
