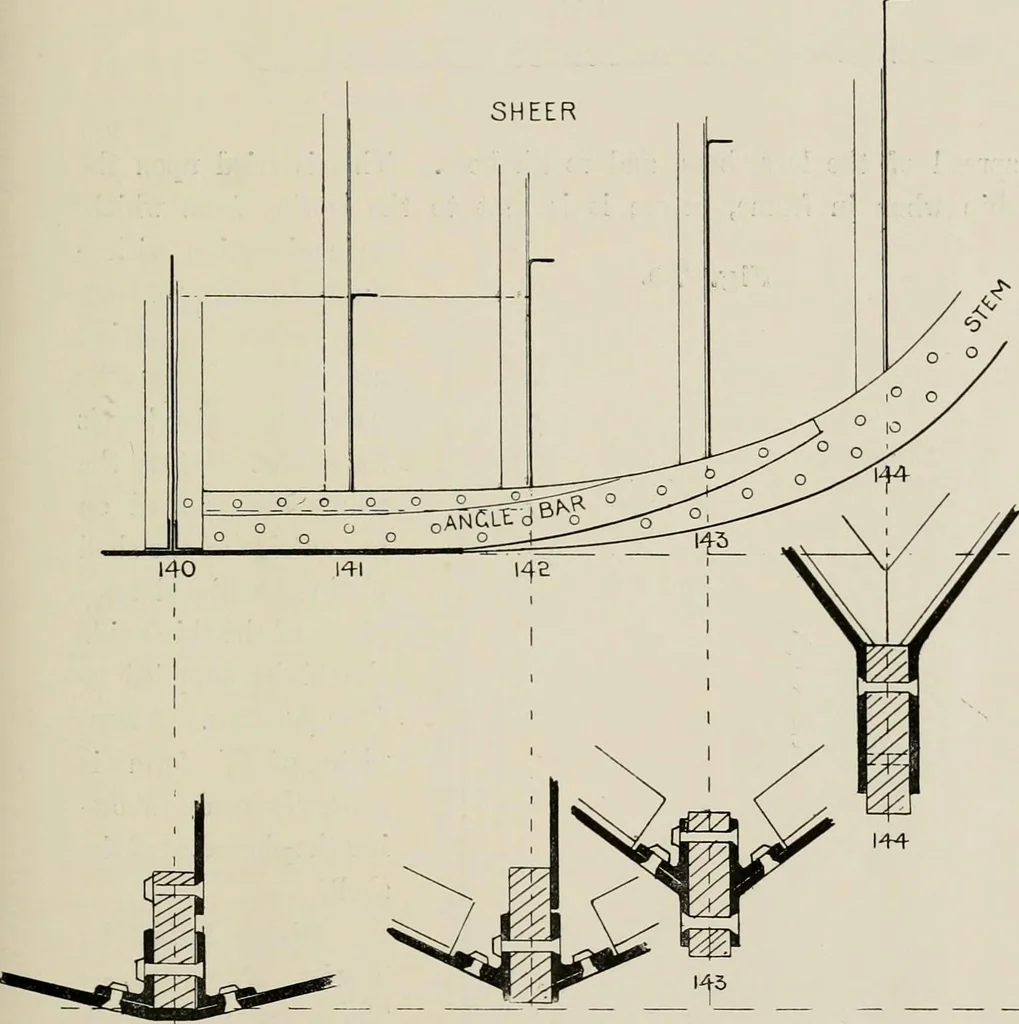

SCARPH MOULDS. 77 The form of the stem scarph, when associated with side barkeel, is given in Fig. 69. Stern Frame.—The forge usually makes its own moulds froma complete figured drawing on a scale of half an inch to a foot, whichis supplied by the shipbuilder, together with enlarged detail… … I40 & 141 14-2 club-foot is fitted in most yards, and for the purpose of forming this,after the ship is faired-up on the loft floor, section moulds are suppliedto the forge. Shaft Struts or After Brackets in Twin Screws.—They areusually made of cast steel. For the purpose of accuracy it is the…
