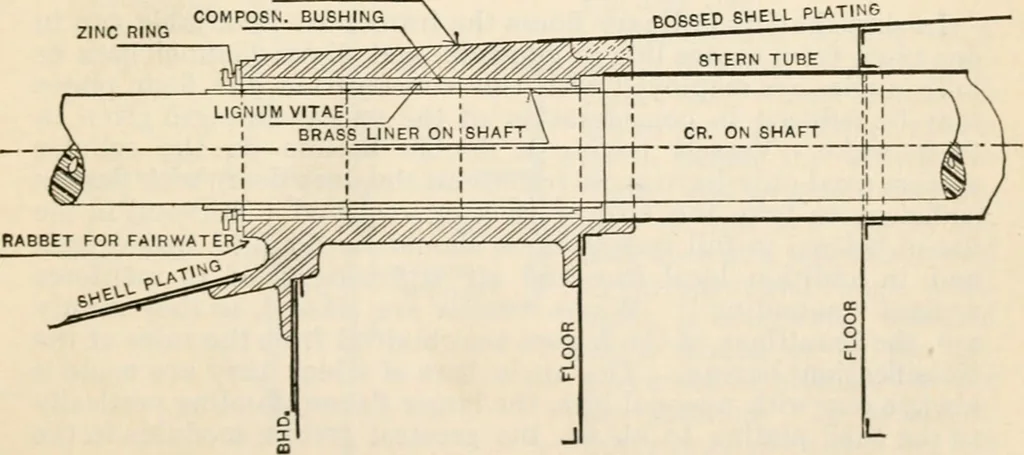

usually double and increased totreble tap rivets around the boss. Local strengthening must alsobe fitted in wake of spectacle frames by increasing the deep floorsin thickness and doubling the ships frames in their vicinity. CASTING AT STERN TUBE. The outboard end of stern tube in vessels fitted… … HORIZONTAL SECTION.Fig. 148. 288 The Naval Constructor Iu large steamers it is usual to extend this casting over twoframes in length to give additional support, as shown in Fig. 148,but in small vessels the tube end support need only be from 2 to4 inches thick, and shaped like Fig. 149. Usually a…
