The naval constructor: a vade mecum of ship design for students, naval architects, shipbuilders and owners, marine superintendents, engineers and draughtsmen (1904)
Simpson, George, 1865- · New York, D. Van Nostrand company ; London, K. Paul, Trench, Trübner & co., ltd. · leaf 319

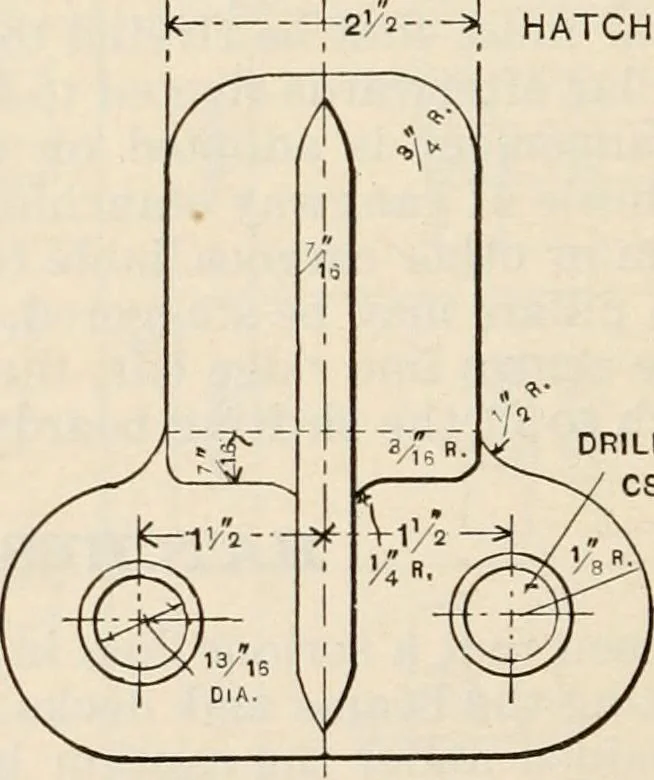

J. STANDARD21/2---J HATCH CLEAT Jt.i._ … DRILL FOR % DlA.CSK. RIVET Fig. 188. ing cleats being fitted. At butts of coaming plates the coveringstrap should be fitted on the outside and the rivets countersunkon both sides. A typical battening cleat is shown by Fig. 188. These may beeither die forged or cast in steel and spaced not greater…
Shipbuilding · Marine engineering
