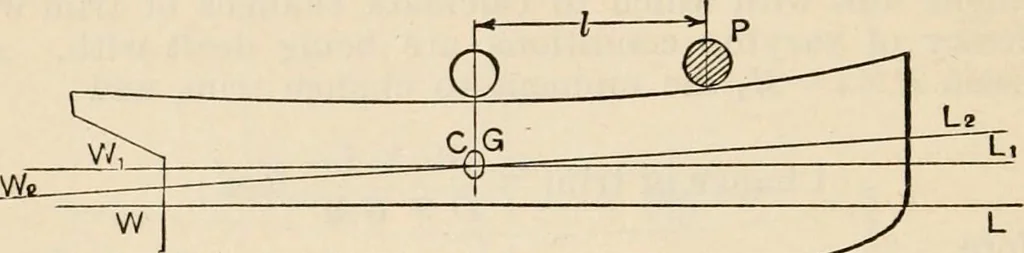

dfor one or two intermediate spots and a curve of M run on theusual sheet of Curves of Elements. 20 The Naval Constructor Alteration in Trim through Shipping a Small Weight. If it be required to place a weight on board but to retain thesame trim, i.e., to float at a draught parallel to the original… … Fig. 7. Instead of dealing with the weight at P let us assume firstlythat it is placed on board immediately over the C.G. of waterplane, when we shall find the parallel immersion to be a layer Pequal to the distance between WL and W\LX whose depth is Let the weight be now moved to its definite…
