Complete perspective course : comprising the elementary and advanced stages of perspective, the projection of shadows and reflections, with exercises in theory and practice, also the practical application of perspective (1900)
Spanton, J. Humphrey (John Humphrey) · London : Macmillan and co. · leaf 279

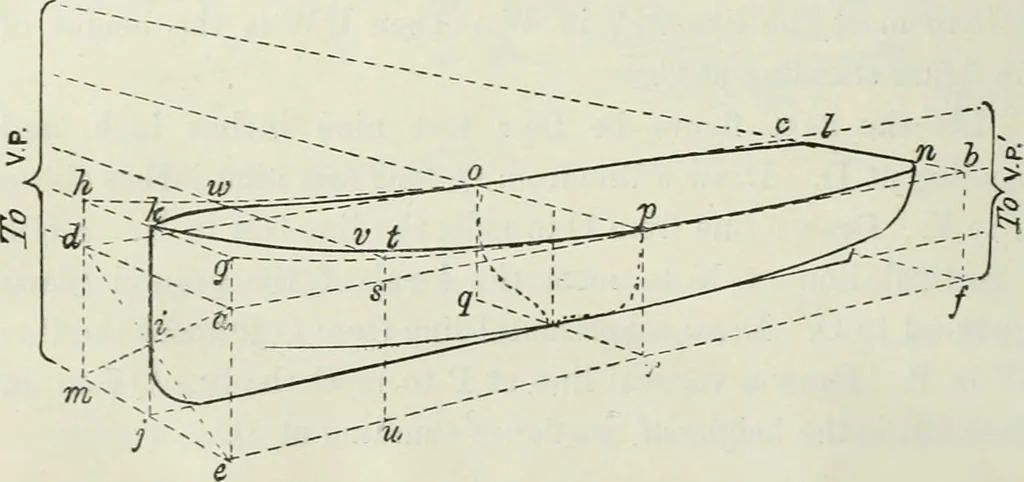

Fi^. 172 a boat; and let abed be the plan, and aefh the elevation of arectangular solid. jSTow we can draw a rectangular solid, mperspective, to any given dimensions, and in any given position,as already shown in the preceding portion of this work. Let the … Fk. 173 corresponding letters in Fig. 173 represent such a solid drawn inperspective. The left-hand end of the boat—the bow^—(Fig.172), is much higher than the opposite end—the stern—i.e. alj V PERSPECTIVE HINTS FOR ARTISTS 257 is about one-third of ae. Make ar/ (Fig. 173) one-tliird of ar,and draw…
Perspective
