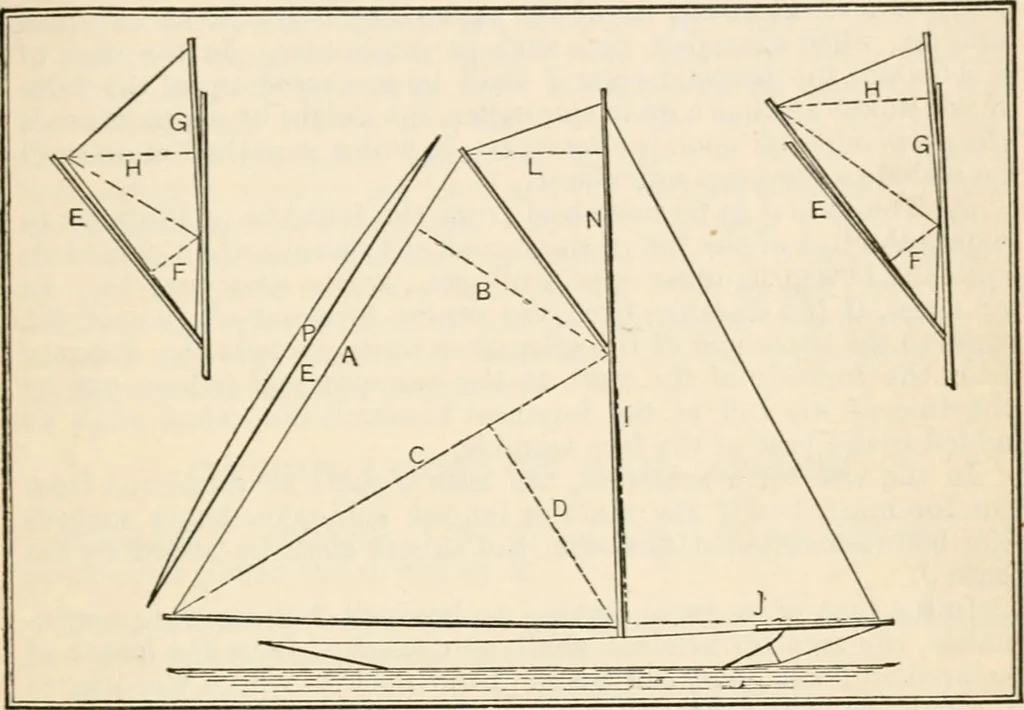

ave of thetopsail sheet, provided the peak cringle of the mainsail does notextend beyond the pin ; in the case of the yacht having no top- Measurement of Sails 467 sail, or of the peak cringle extending beyond the pin of thetopsail-sheet sheave, the measurement to be taken to the peaklacing-hole.… … Fig. 288. D. Perpendicular to C, measured in to the mast, in a line withthe top of the boom, or to tack cringle of mainsail, if below topof boom. Club Topsail.—E. Measured from upper side of gaff closein to the mast to pin of sheave for topsail sheet, or to lacing-holein club. F. Perpendicular to…
